FTTX Fiber Optic Cable Checker OPM-TQ110 For CATV Telecommunications

Ask Lasest Price
Model Number :	OPM-TQ1XX
Brand Name :	ODM/OEM
Supply Ability :	50 Set/Sets per Month
Price :	$45.00 - $59.00/pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

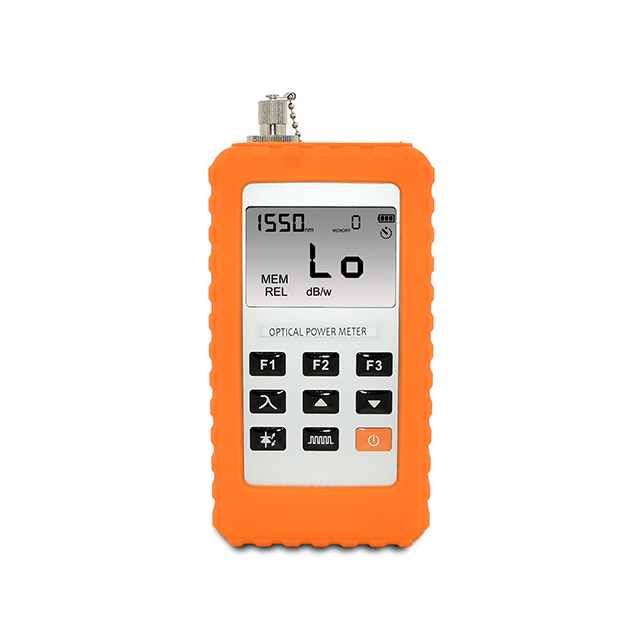

FTTX Fiber Optic Cable Checker OPM-TQ110 For CATV Telecommunications

Fiber Optic Cable Checker Tool Kit Fiber Optic Power Meter OPM-TQ110/120 for CATV Telecommunications Engineering Maintent

Product Description:

OPM-TQ1XX series of low-power basic optical power meter use the most advanced dedicated integrated chip for hand-held instrumentation to achieve ultra-low power operation, optical fiber communication, CATV system construction and the process of maintenance.

FTTX Fiber Optic Cable Checker OPM-TQ110 For CATV Telecommunications

Feature

◆ Portable design.
◆ FC/PC adapter(SC/ST customized)
◆ High quality measuring
◆ 1000 data storage
◆ Available for SM & MM fibers
◆ Low power consumption, 200 hrs working
◆ Available for FTTH optic power test

Specification

Technical Specifications	OPM-TQ110	OPM-TQ120
Detector Type	InGaAs
Interface Type	FC/PC(Optional: SC/ST)
Power Measuring Range(dBm)	-50~+26, -70~+10
Measuring Wavelength(nm)	850/1300/1310/1490/1550/1625
Precision	±0.01dB
Storage	1000
Power Supply	3 * 1.5V dry batteries
Battery Life	>200h
Operating Temperature	-10℃~+60℃
Storage Temperature	-25℃~+70℃

Main Products

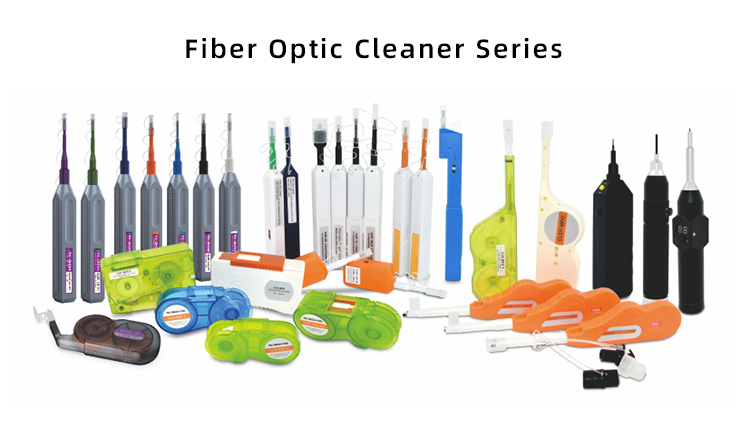

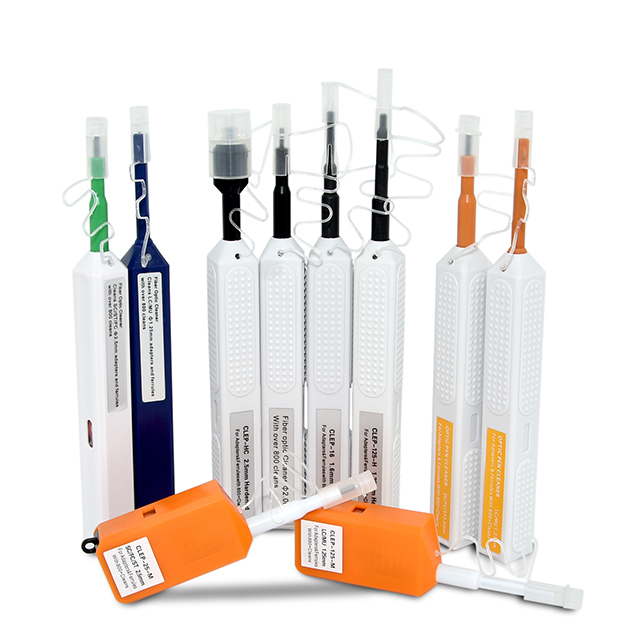

Fiber Optic Cleaner Pen

MPO Cleaner

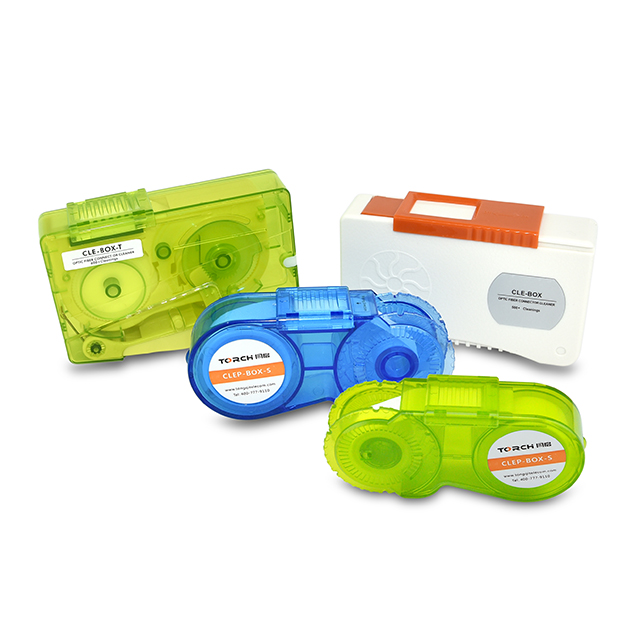

Fiber Optic Cassette Cleaner

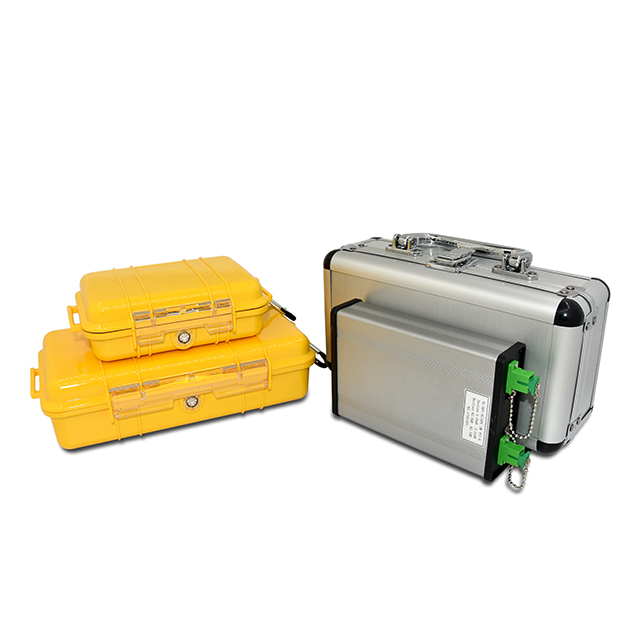

OTDR Launch Cable Box

Hand-Held Inspection Probe

Bench-Top Microscope

Integrated Ethernet Data Tester

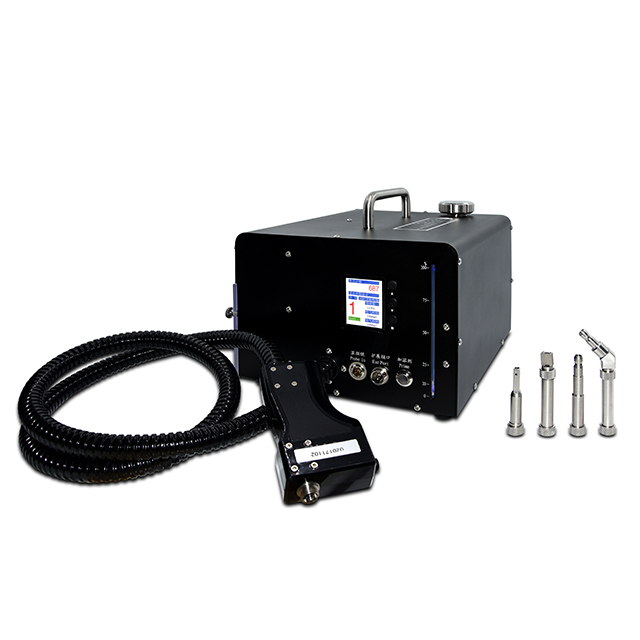

Electronic Cleaning Machine
