FTTX Fiber Test Equipment , Fiber Optical Power Meter With Light Source OLS-TQ2XX

Ask Lasest Price
Model Number :	OLS-TQ2XX
Brand Name :	ODM/OEM
Supply Ability :	50 Set/Sets per Month
Price :	$79.00 - $89.00/pieces

Add to Cart

Product Details
Company Profile

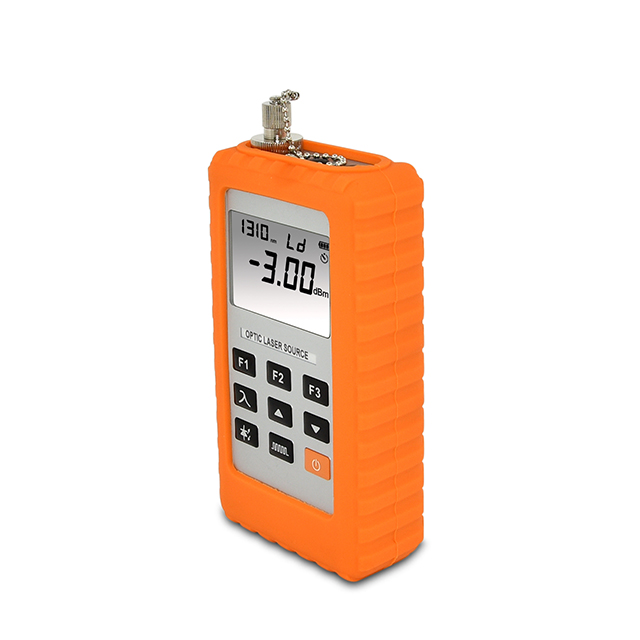

FTTX Fiber Test Equipment , Fiber Optical Power Meter With Light Source OLS-TQ2XX

Optic Fiber Test Equipment Fiber Optical Power Meter with Light Source OLS-TQ2XX for CCTV Communication Engineering

Product Description

OLS-2xx series of high stability of the basic type of laser light source use the most advanced dedicated integrated chip for hand-held instrumentation to achieve ultra-low power operation, and use the advanced control technology to achieve high stability output. This instrumentation can provide 4 wavelength light source.

FTTX Fiber Test Equipment , Fiber Optical Power Meter With Light Source OLS-TQ2XX

Feature

◆ Portable design.

◆ FC/PC adapter(SC/ST customized)

◆ High quality measuring

◆ 3.5'LCD

◆ Available for SM & MM fibers

◆ Low power consumption, 60 hrs working

◆ Available for FTTH optic power test

Specification

Technical Specifications	OLS-TQ210	OLS-TQ220	OLS-TQ230
Operating Wavelength	850/1300	1310/1550	1490/1550
Luminescent Device Type	FP-LD
Interface Type	FC(Optional: SC/ST)
Output Power(dBm)	>-5
Modulation Mode	CW/270Hz/1KHz/2KHz
Output Stability(dBm)	±0.04 @20℃ @15min
Power Supply	3 * 1.5V dry batteries
Battery Life	>60h
Operating Temperature	-10℃~+60℃
Storage Temperature	-25℃~+70℃
External Dimension	140mm63mm31mm

Main Products

Fiber Optic Cleaner Pen

MPO Cleaner

Fiber Optic Cassette Cleaner

OTDR Launch Cable Box

Hand-Held Inspection Probe

Bench-Top Microscope

Integrated Ethernet Data Tester

Electronic Cleaning Machine

Fiber Check & Clean Tool Case

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.
