    OEM Fiber Test Equipment , Fibre Optic Light Source Tester For 1490nm 1550nm FTTx

    Ask Lasest Price
    Model Number : PON 80
    Brand Name : ODM/OEM
    Price : $117.00/sets
    Certification : RoHS, CE
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

    OEM Fiber Test Equipment , Fibre Optic Light Source Tester For 1490nm 1550nm FTTx

    China Professional Factory Supply Pon Optical Power Meter Tester With 1310/1490/1550nm FTTx Application

    PON80 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.

    Characteristic

    1.It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
    2.Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
    3.Used in Burst mode measurement of 1310nm upstream.
    4.Use the software connect with PC, setting the threshold, data transfer, and calibration the ave length.
    5.USB communication port enables data transfer to a PC.1000measurement item can be saved in PON80 PON power meter or computer for data review.
    6.With optical power meter modual,include850,300,1310,1490,1550,1625sixs(PON80AP, PON80A without 850nm wavelength ); With visual fault locator modual (PON80 and PON80AV)
    7.Optical power meter and VFL with one port.(onlyT-PO3213A)
    8.Optional Chinese/English display.
    9.Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
    10.10 minutes Auto-off function can be activated or deactivated
    11.Good key design,high sensitivity, greatly reducing the volume and weight of the tester.

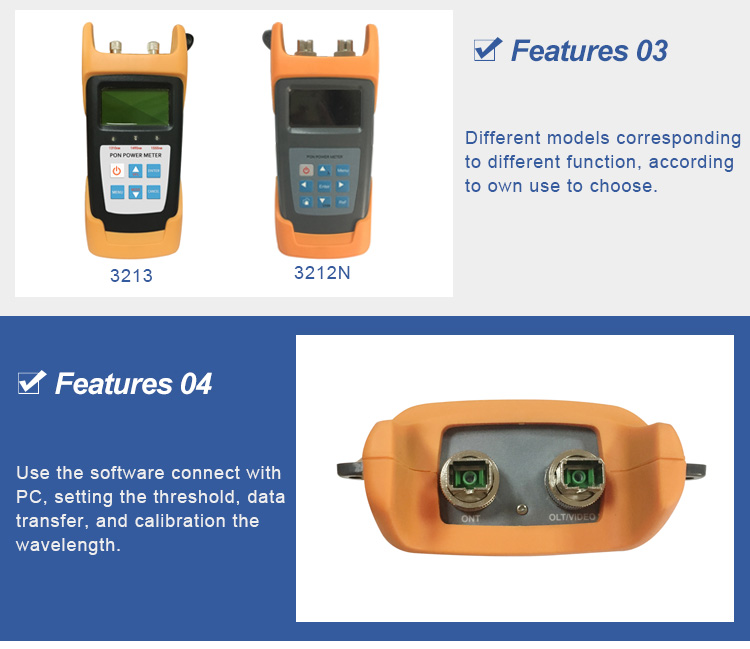

    12.Different models corresponding to different function, according to own use to choose .

    Features

    PON module

    1310 upstream measurement
    Pass Zone(nm)
    1260nm～1360nm
    Measurement Range (dBm)
    -40dBm～+10dBm
    Output power(max)
    15dBm
    Isolation@1490/1550(dB)
    >40dB
    Burst mode measurement

    error
    <±0.5dB
    1490 downstream measurement
    Pass Zone(nm)
    1535nm～1570nm
    MeasurementRange(dBm)
    -40dBm～+10dBm
    Output power(max)
    25dBm
    Isolation@1310/1550(dB)
    >40dB
    1550 downstream measurement
    Pass Zone(nm)
    1535nm～1570nm
    Measurement Range(dBm)
    -40dBm～+10dBm
    Output power(max)
    25dBm
    Isolation@1310/1490nm)
    >40dB
    Measurement Accuracy
    Connatural uncertainty(dB)
    ±0.5dB
    Linearity(dB)
    ±0.1dB
    Passing through insertion Loss(dB)
    <1.5dB
    General Information
    Detector Type
    InGaAs
    Optical Connector
    FC/SC/ST Interchangeable/2.5 universal adapter
    Fiber Type
    SM 9/125um
    Measurement Unit
    dB/dBm/xW
    Resolution (dB)
    0.01dB
    Operation Voltage(V)
    DC 3.3V～5.5V
    Power Supply
    3pc1.5V battery
    Continuously Operation time (h)
    PON: 90h
    PON: 90h
    OPM: 100h
    VFL: 50h
    PON:90h
    VFL: 50h
    PON: 90h
    OPM:100h
    Operation Temperature(℃)
    -10℃～60℃
    Storage temperature(℃)
    -10℃～60℃
    Weight(kg)
    423g
    425g
    424g
    424g

    Note: The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight turn on the operation time will be shorted.

    Normal Optical Power Meter Module

    Normal Optical Power Meter
    PON80
    PON80A
    PON80AP
    Measurement Accuracy
    Connatural uncertainty(dB)
    ±0.5dB
    Linearity(dB)
    None
    ±0.1dB
    Measurement Range(dBm)
    -70dBm～+6dBm
    General Information
    Measurement Unit
    None
    dB/dBm
    Resolution (dB)
    0.01dB
    Calibration Wavelength(nm)
    1300/1310/1490/1550/1625
    850/1300/1310/1490/1550/1625
    Detector Type
    InGaAs
    Optical Connector
    FC/SC/ST Interchangeable/2.5 universal

    VFL Module

    VFL
    PON80
    PON80A
    PON80AV
    Output power
    None
    >0.5mW
    Wavelength
    650nm
    Optical Connector
    FC/SC/STInterchangeable/2.5 universal adapter
    Fiber Type
    SM/MM
    Packing
    OEM Fiber Test Equipment , Fibre Optic Light Source Tester For 1490nm 1550nm FTTx
    Product Picture
    Our Company
    We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.
