3 Meter SC APC Patch Cord Single Mode Simplex 9/125 Armored

Ask Lasest Price
Model Number :	SC APC
Brand Name :	OEM
Certification :	ROHS; ISO
Supply Ability :	50000 Piece/Pieces per Day
Price :	$0.45 - $1.20/pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

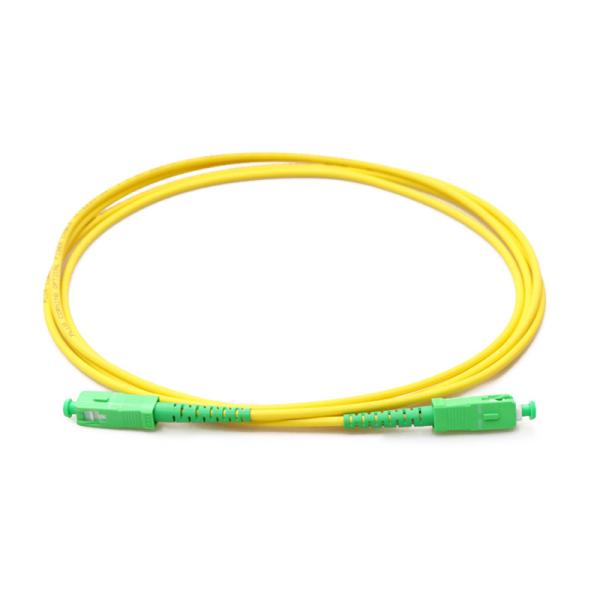

3 Meter SC APC Patch Cord Single Mode Simplex 9/125 Armored

Factory Best Price SC-SC APC SingleMode Simplex 9/125 Armored 3 Meter Fiber Optic SC Patch Cord Cable Price

SC/APC-SC/APC fiber optic patch cordis used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.

SC-SC Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and
conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

3 Meter SC APC Patch Cord Single Mode Simplex 9/125 Armored

Mode	Single mode			Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm			850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:	(1)9/125-G652D	(2)9/125-G655	(3)9/125-G657A,G657A2	(4)9/125-G657B3
Fiber type		Multimode:	(5)50/125-OM2	(6)62.5/125-OM1	(7)50/125-OM3	(8)50/125-OM4	(9)50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura
Connector	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket	PVC, OFNR, LSZH, OFNP
length(M)	0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

Main Products

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
