3m Yellow Fiber Optical Patch Cord FC SC LC ST APC UPC Single Mode

Ask Lasest Price
Model Number :	sc apc patch cord
Brand Name :	OEM
Supply Ability :	200000 Piece/Pieces per Quarter
Price :	$0.50 - $0.98/pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

3m Yellow Fiber Optical Patch Cord FC SC LC ST APC UPC Single Mode

Product Description

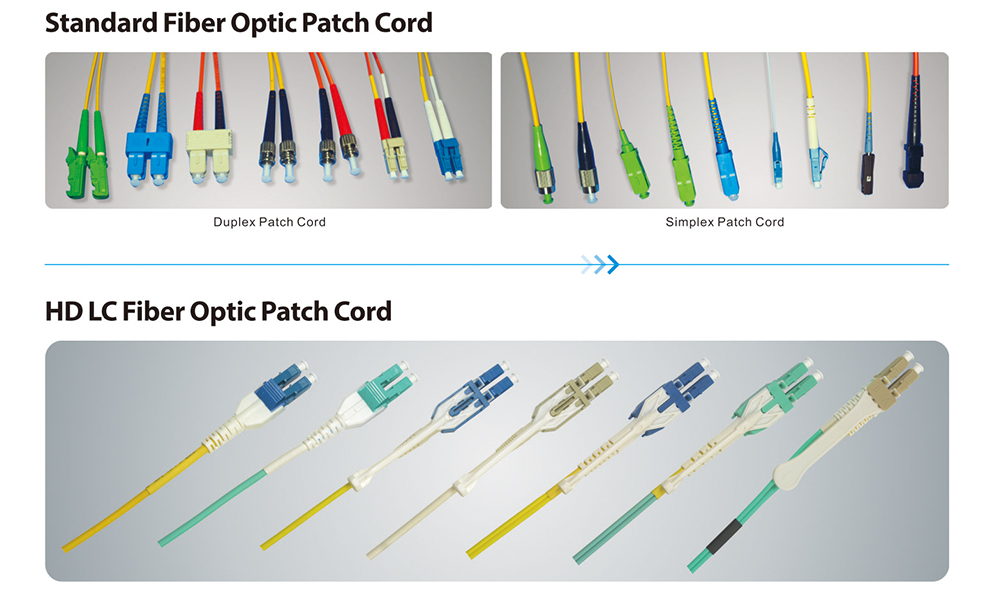

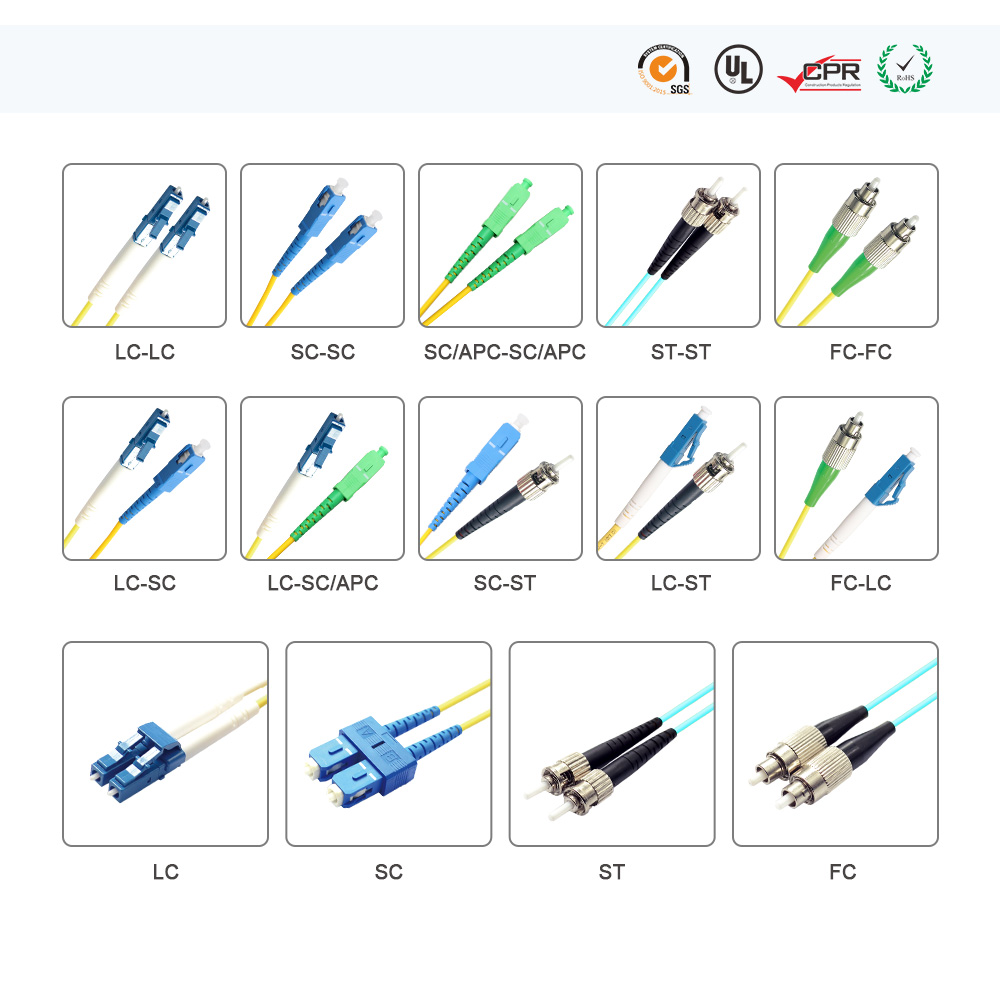

FC/SC/LC/ST APC UPC Singlemode Fiber Optic Patch Cord 3m Yellow Fiber Optical jumper cable

1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Mode	Single mode			Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm			850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

3m Yellow Fiber Optical Patch Cord FC SC LC ST APC UPC Single Mode

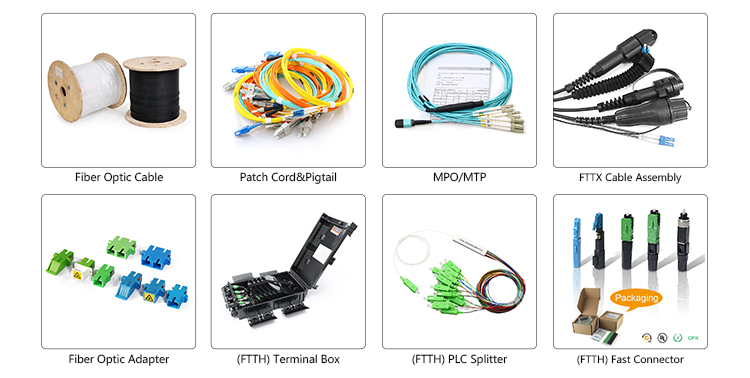

Main Products

Company Profile

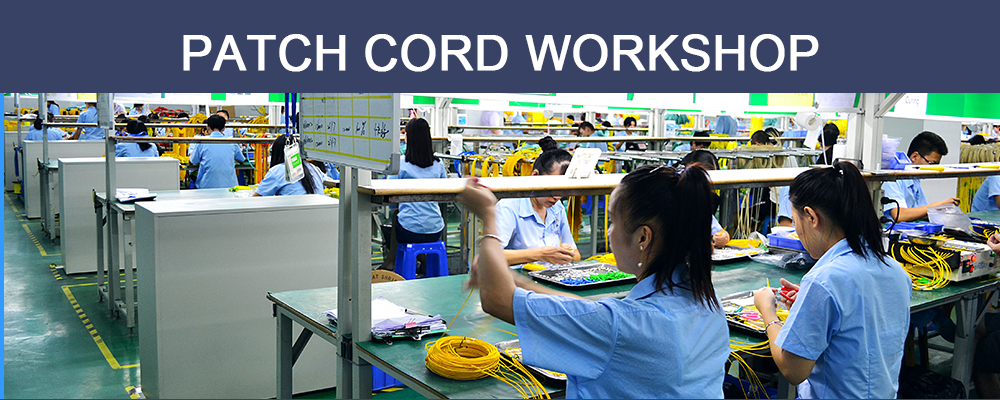

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
