Male To Female Fixed Fiber Optic Attenuator SC 10dB 20dB 30dB

Ask Lasest Price
Model Number :	SC
Brand Name :	ODM/OEM
Supply Ability :	20000 Piece/Pieces per Day
Price :	$1.00 - $5.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

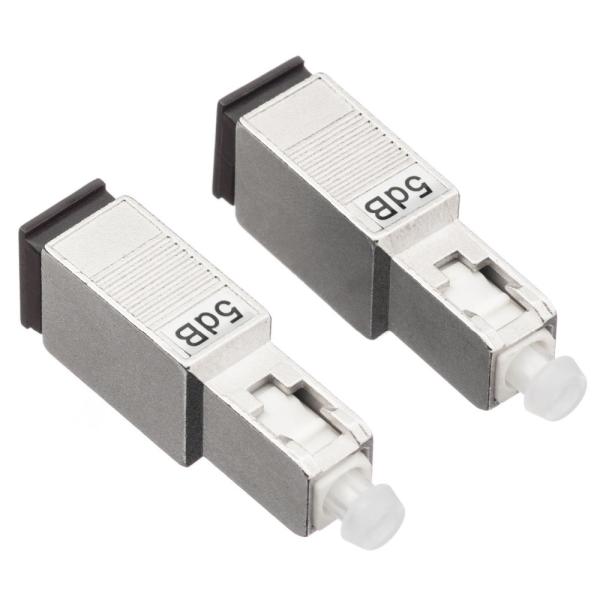

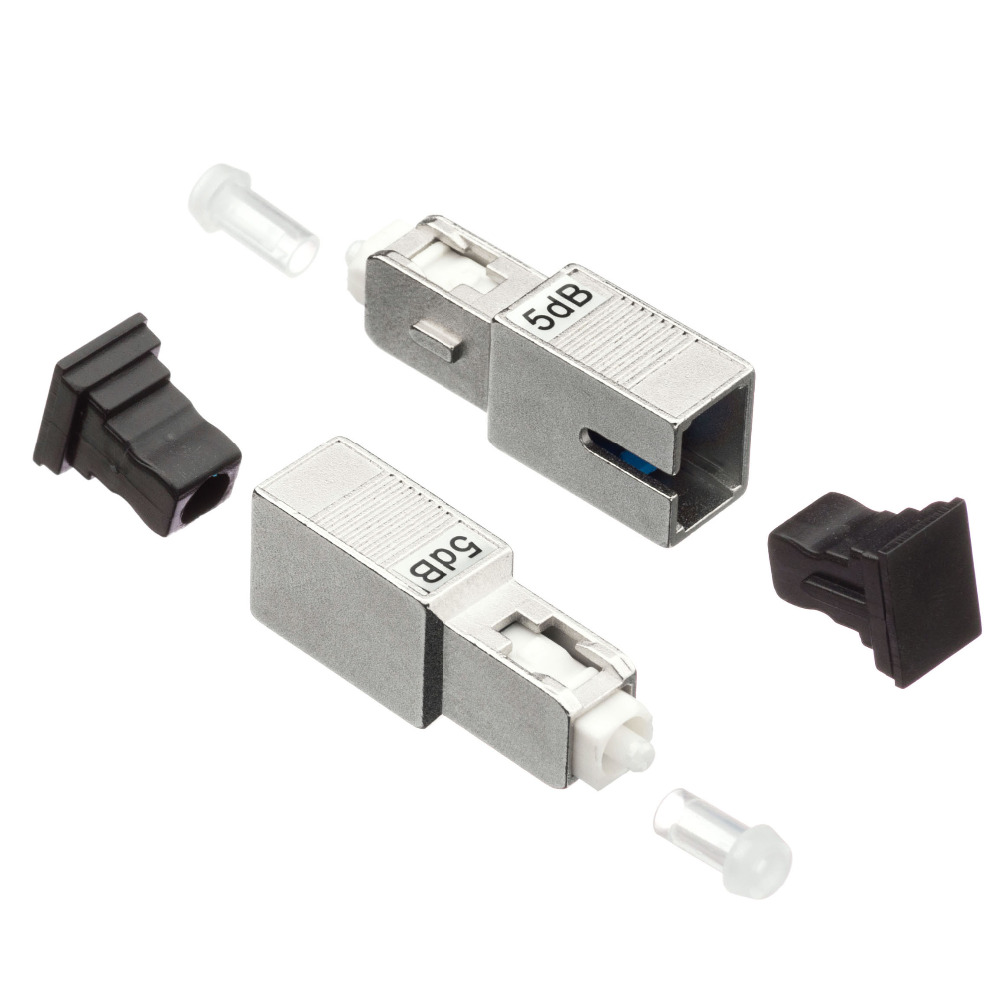

Male To Female Fixed Fiber Optic Attenuator SC 10dB 20dB 30dB

Product Description

0dB 1dB 2dB 5dB 10dB 20dB 30dB SC Attenuator Male to Female Fixed Fiber Optic Attenuator

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.

Male To Female Fixed Fiber Optic Attenuator SC 10dB 20dB 30dB

Product type	Coupler Attenuator Male to Female
Operation wavelength	SM: 1200 to 1600nm or 1310/1550nm
Operation wavelength		MM: 850nm, 1300nm
Return Loss	≥ 50 db (PC)
		≥ 55 db (UPC)
		≥ 65 db (APC)
Attenuation Accuracy	+/-0.5 db for 1 to 5db attenuation
Attenuation Accuracy		+/-10% for 6 to 30db attenuation
Polarization Dependent loss	≤ 0.2db
Mechanical endurance	>1000
Maximum optical Input power	200MW
Operating Temp Range	-40 to + 80degree

Main Products

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 2500 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
