MPO Fiber Optic Loopback 24 Cores OM4 With ISO9001 Certified

Ask Lasest Price
Model Number :	MPO Loopback
Brand Name :	ODM/OEM
Supply Ability :	20000 Piece/Pieces per Week
Price :	$8.50 - $15.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

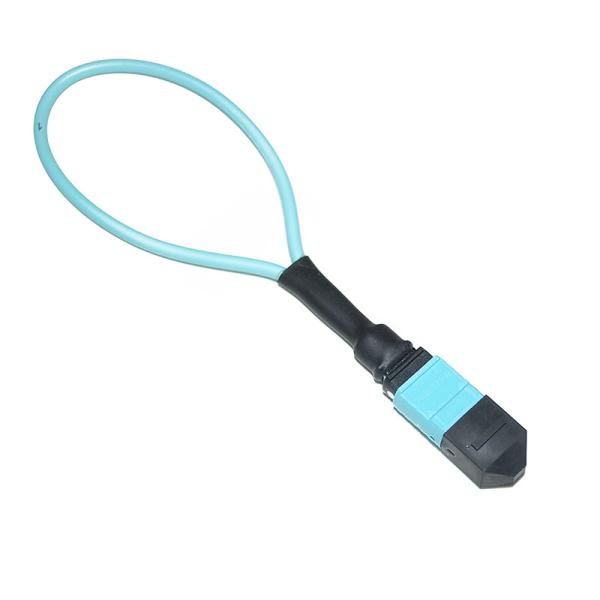

MPO Fiber Optic Loopback 24 Cores OM4 With ISO9001 Certified

Professianal manufacturer MPO Fiber Optic Loopback,24 Cores,OM4 MPO Optical Loop Back

Product Description

MPO Fiber Optic Loopback 24 Cores OM4 With ISO9001 Certified

①MPO/MTP Trunk Cable
②MPO/MTP Harnesses Cables
③MPO/MTP Fan out 0.9mm Patch Cords
④IP-Series MPO/MTP Assembly
⑤High Density Patch Cords
⑥MPO/MTP Loopback
⑦MT Patch Cords
⑧MPO/MTP Cassettes
⑨MPO/MTP Fiber Optic Patch Panel

IPFX(MTP/MO)

ODVA(MTP/MPO)

High Density

MPO Fiber Optic Loopback,24 Cores,OM4 MPO Optical Loop Back

APPLICATION

40GbE QSFP+ Optical Testing
Research and Development
Manufacturing Test
Troubleshooting
Quality Control
Training

FEATURES

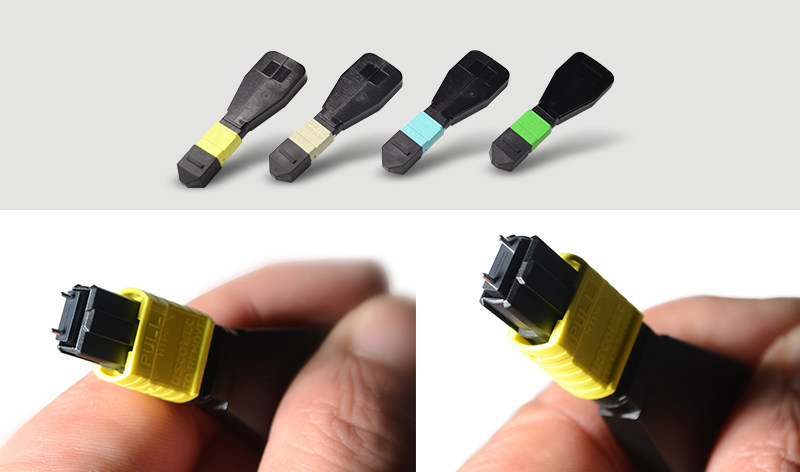

Available in a wide variety of wiring configurations and fiber types
All loopbacks meet TIA/EIA and IEC intermateability standards
8 , 12, and 24 Fiber available
Easy Installation/Removal,available with or without Pull tabs
Compact and portable with lanyard feature

Product Parameters

Performance Level

Standard

Elite

Connector

Mode

Endface

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

12F/APC

≤0.70

≥60

≤0.35

≥60

24F/APC

≤0.75

≥60

≤0.35

≥60

12F/PC

≤0.50

≥20

≤0.35

≥20

24F/PC

≤0.50

≥20

≤0.35

≥20

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item			Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)			20*OD (Cable Diameter)
Min Bend Radius (Static )			15*OD (Cable Diameter)

Environment Conditions
Item	Criteria	Conformance
Operation Temperature	-40~60°C	IEC 61753-1
Storage Temperature	-45~85°C	IEC 61753-1

Main Products

Fiber Optic Cable

Patch Cord&Pigtail

MPO/MTP

FTTX Cable Assembly

PLC Splitter

Fast Connector

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
1 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
