Fiber Optic FTTH Solution Cable Waterproof With IPSC APC H Connector

Ask Lasest Price
Model Number :	IPSC-APC HOptic
Brand Name :	ODM/OEM
Supply Ability :	20000 Piece/Pieces per Day
Price :	$5.80 - $12.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Fiber Optic FTTH Solution Cable Waterproof With IPSC APC H Connector

Professional IPSC-APC H Connector fiber optic cable waterproof patch cord from China factory

Product Description

Fiber Optic FTTH Solution Cable Waterproof With IPSC APC H Connector

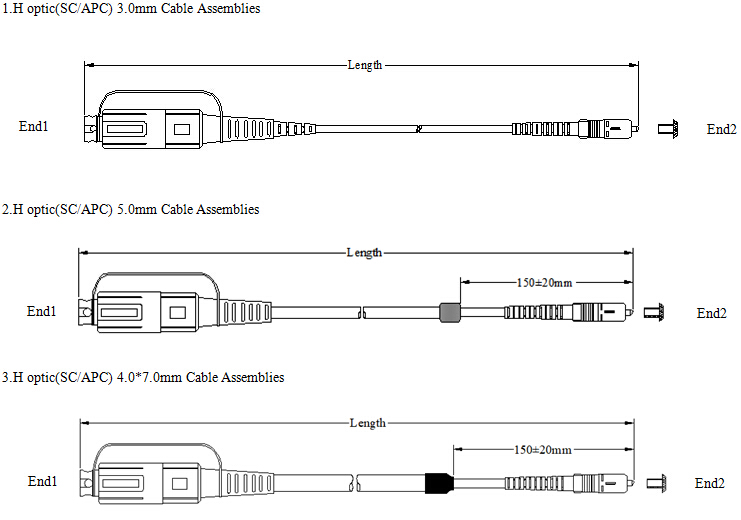

H Optic (SC/APC) Cable Assembly

IPSCAPC Cable Assembly

IPSC-APC H Connector fiber optic cable waterproof patch cord

APPLICATION

1.FTTH. 2.Outdoor Areas. 3.Harsh Environment.

FEATURES

1. Compatible with Corning-OptiTap and H-Connector;

2. Factory terminated for high performance;

3. Available with one or both ends connectorized;

4. Hybrid (one end with an OptiTap Connector, one end with standard
SC connector) available with or without pulling grip;

5. Available in dielectric or toneable;

6. Designed for aerial, direct-buried or duct installation;

7. IP-68 water and dust protection ;

8. -40℃~85℃ operating temperature;

H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H connector end incorporates an SC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC connectors mate to a standard adapter providing a common interface for FTTX applications

Type	SM-UPC			SM-APC			MM-UPC
Type		Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB			≥30dB			≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
