Optical Fiber SC APC Coupler Transparent ABS Material For FTTH

Ask Lasest Price
Model Number :	SC/APC
Brand Name :	OEM
Certification :	RoHS, CE
Price :	$0.39/pieces 100-499 pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

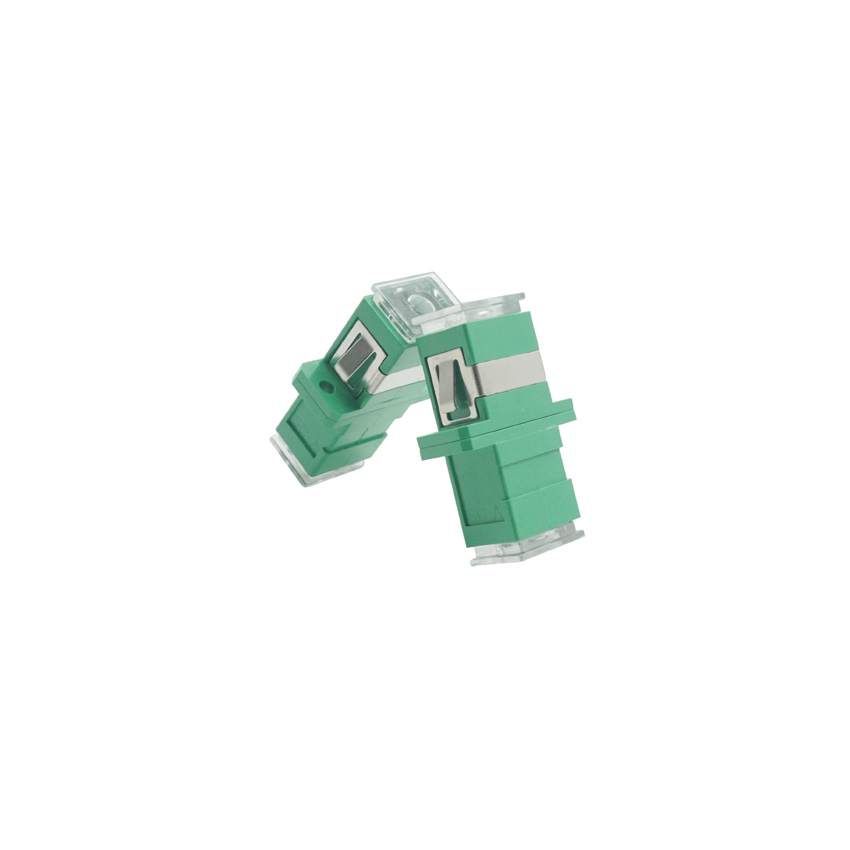

Optical Fiber SC APC Coupler Transparent ABS Material For FTTH

Ready to ship New transparent optical fiber SC APC Flange Coupler

Product Description

Feature:

---Low insertion loss and back reflection loss

---Ferrule end surface pre-domed

---Precision anti-rotation key and corrosion resistant body

---Telcordia style boots

---Free-floating ceramic ferrule

---Zirconia sleeves or Phosphor bronze sleeves

Applications:

---Fiber Optic Telecommunications

---LAN (Local Area Network)

---FTTH (Fiber To The Home)

---CATV&CCTV System

---High speed transmission systems

---Fiber optic sensing

---Industrial, Mechanical and Military

Optical Fiber SC APC Coupler Transparent ABS Material For FTTH

Specification

Specifications
Wavelength (nm)	SMF:1310/1550 ; MMF:850/1300
Repetitiveness (dB)	≤0.1
Attenuation range (dB)	0-15
Attenuation tolerance (dB)	0-5:±0.5 5-15:±10%
Interchangeability (dB)	≤0.2
Plug times	1000times ≤0.2
MAX Optical Power(mw)	≤200
Operating Temperature(℃)	-40~+85

Package

Packing
Simplex	2000pcs/carton
Weight	8.5kg
Carton Dimension	470x310x210mm

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 2500 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
