Simplex ST Optical Fiber Adapter Single Mode With Zirconia Sleeve

Ask Lasest Price
Model Number :	ST to ST
Brand Name :	ODM/OEM
Price :	$0.18/pieces 100-199 pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

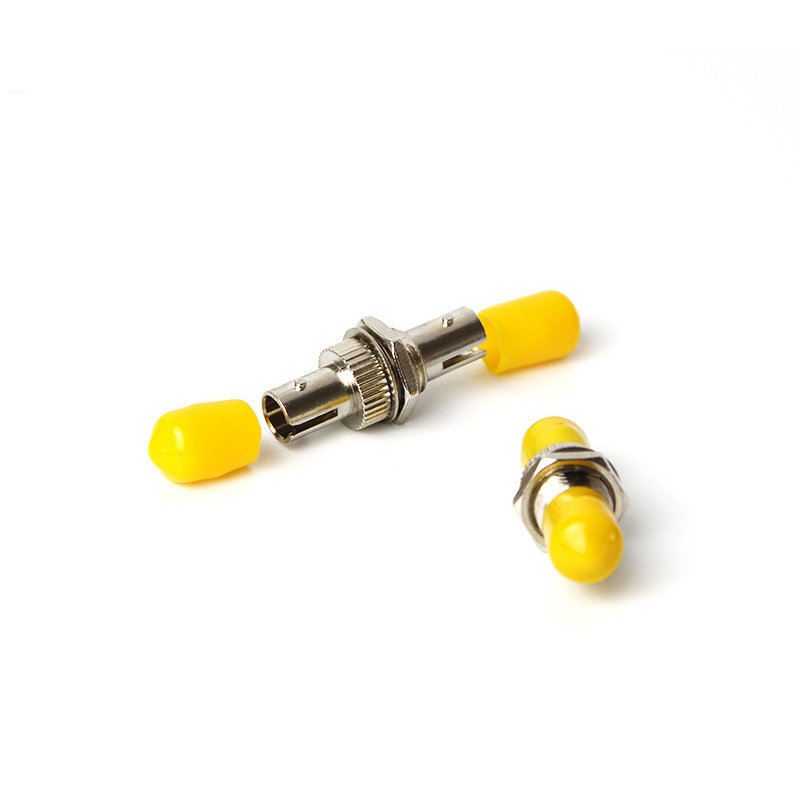

Simplex ST Optical Fiber Adapter Single Mode With Zirconia Sleeve

China factory supply Fiber Optic Simplex Adapters ST optical fiber adapter

Product Description

ST fiber optic adapter are flange type, single mode adapters are with zirconia sleeve

1. Low insertion loss, high return loss

2. Good compatibility

3. High precision of mechanical dimensions

4. High reliability & stability Ceramic or Bronze Sleeve PC, APC, UPC optional Simplex / Duplex

Simplex ST Optical Fiber Adapter Single Mode With Zirconia Sleeve

SPECIFICATION

Sleeve Material: Ceramic or beryllium bronze;

Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;

Working Wavelength: 1200~1600nm;

Working Condition: -40°C to +75°C;

Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;

Repeatability: No more than 0.2dB ;

The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.

Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green

APPLICATION

1.Local Area Network CATV
2.System Telecommunication Networks Equipment

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 2500 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
