Customized Fiber Optic Cwdm With 8 Channel 16 Channel Mux Demux Down

Ask Lasest Price
Model Number :	CWDM
Brand Name :	ODM/OEM
Supply Ability :	10000 Set/Sets per Day
Price :	$2.00 - $50.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Customized Fiber Optic Cwdm With 8 Channel 16 Channel Mux Demux Down

Optic Technology CWDM With ABS Package 2/4/8/16 Channel Mux/Demux Down From Professional Manufacturer

Product Description

Optic Technology CWDM With ABS Package 2/4/8/16 Channel Mux/Demux Down

A Fiber Solution is a manufacturer for famous WDM users and customers. We continuously tried to improve product quality, introducing OPTRUN coating machine from Japan , and have coating capacity ,which make the film stable and good quality , The WDM full parameter testing system,which has been developed by our team,has highly improve the WDM device and modules testing efficiency and data integrated services. we also do vertical integration ,this ensure the high quality and delivery in time.We accumulated product development and managerial experience in fiber optic field to satisfy different requirements. Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The 6com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability. Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.

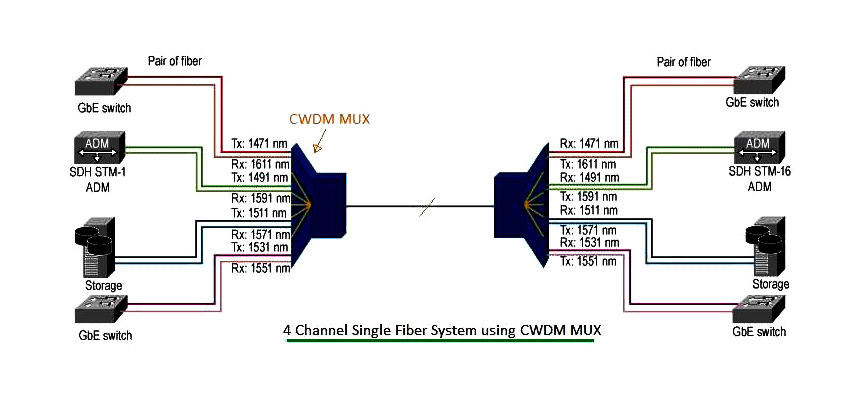

APPLICATION

CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications

FEATURES

1)Low Insertion Loss
2)Excellent Channel Isolation
3)High Stability & Reliability
4)Low Cost

Customized Fiber Optic Cwdm With 8 Channel 16 Channel Mux Demux Down

Item	Unit	Parameters
Channel spacing		20 nm ITU grids
Wavelength range	nm	1260 to 1620
Channel centers (ITU or ITU+1)	nm	1270/1290…1610 or 1271/1291…1611
Passband	nm	≥+/-6.5 ,7.0,7.5
Passband ripple	dB	≤0.35
Transmission insertion loss	dB	≤0.70 (Typical 0.50)
Reflection insertion loss	dB	≤0.40
Transmission isolation (adj channel)	dB	≥30
Transmission isolation (non-adj channel)	dB	≥45
Reflection isolation	dB	≥13
Polarization dependent loss	dB	≤0.1
Polarization mode dispersion	ps	≤0.2
Thermal Stability	dB/°C	≤0.005
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≤300
Tensile Load	N	≥5
Operating temperature range	°C	-5 to 70
Storage temperature range	°C	-40 to +85
Fiber type		SMF-28e
Package dimension	mm	≤5.5 x 34

Main Products

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.
