Customized WDM Wavelength Division Multiplexing CCWDM 8CH+ Mux Demux

Product Description

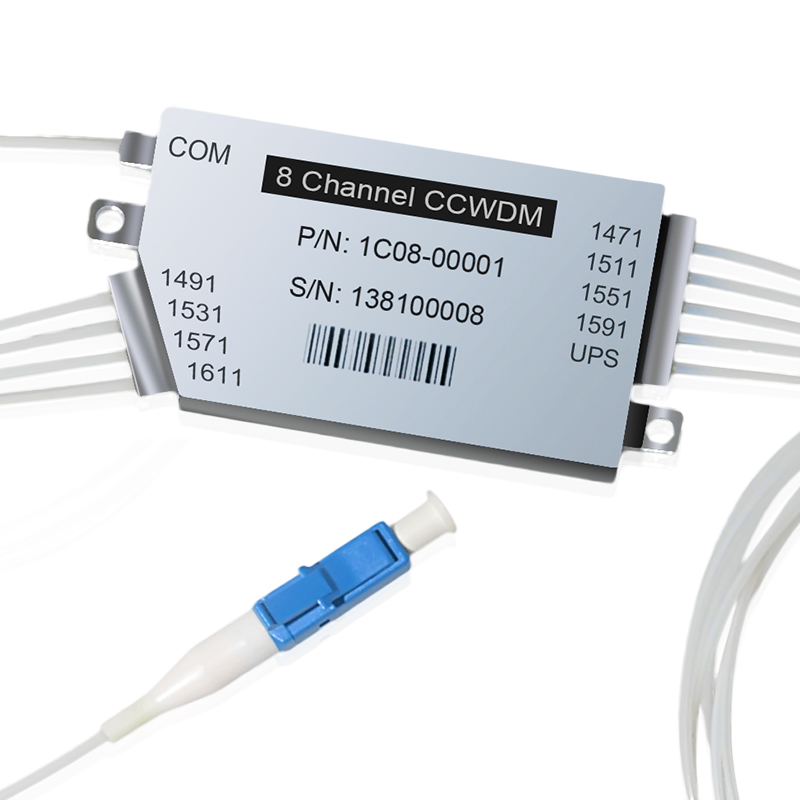

Compact Coarse Wavelength Division Multiplexer CCWDM 8CH+ mux demux

Our compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using our proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, our Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better.All CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE) Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The 6com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability.

APPLICATION

CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications

FEATURES

1)Low Insertion Loss
2)Excellent Channel Isolation
3)High Stability & Reliability
4)Low Cost
5)Compact size

Customized WDM Wavelength Division Multiplexing CCWDM 8CH+ Mux Demux

Product Parameters

Parameter					Specification
Channel Number (CH)					4	8	8(+E1)	8(+E2)
Center Wavelength(nm)					1270, 1290…1610 or 1271, 1291…1611
Passband(nm)	Channels (Min.)			+/-6.5
Passband(nm)		Upgrade port(Min.)						1310+/-50	1260~1458
Isolation(dB)	Mux	Adjacent (Min.)	30
				Non-adjacent (Min.)	45
				Upgrade Por(Min.)	15
		Demux	Adjacent (Min.)	30
				Non-adjacent (Min.)	45
				Upgrade Por(Min.)	15
Insertion Loss(dB)	Channels (Max.)			1.0	1.5	1.5	1.5
Insertion Loss(dB)		Upgrade Por(Max.)			/	/	1.2	1.2
Maximum Ripple in Passband(dB)					0.5
Min. Directivity (dB)					55

Maximum Polarization Dependent Loss (dB)	≤0.2
Maximum Polarization Mode Dispersion (ps)	0.10(GD)
Min. Return Loss(dB)	50
Fiber Type	Corning SMF-28e,900um Loose Tube
Fiber Length (m)	1.0+/-0.1
Maximum Power Handling (mW)	500
Opterating Temperature (℃)	-10~+70
Storage Temperature (℃)	-40~+85
Package dimension (mm)	Package A: (L)44.0x(W)28x(H)6.0 Package B: (L)53.8x(W)28x(H)8.0
