Customized Athermal AWG Dwdm Mux Demux Module 40CH 100GHz Flat Top

Ask Lasest Price
Model Number :	DWDM
Brand Name :	ODM/OEM
Supply Ability :	10000 Set/Sets per Day
Price :	$35.00 - $500.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Customized Athermal AWG Dwdm Mux Demux Module 40CH 100GHz Flat Top

40CH 100GHz Flat-Top Athermal AWG DWDM MUX DEMUX Module From China Professional Manufacturer

Product Description

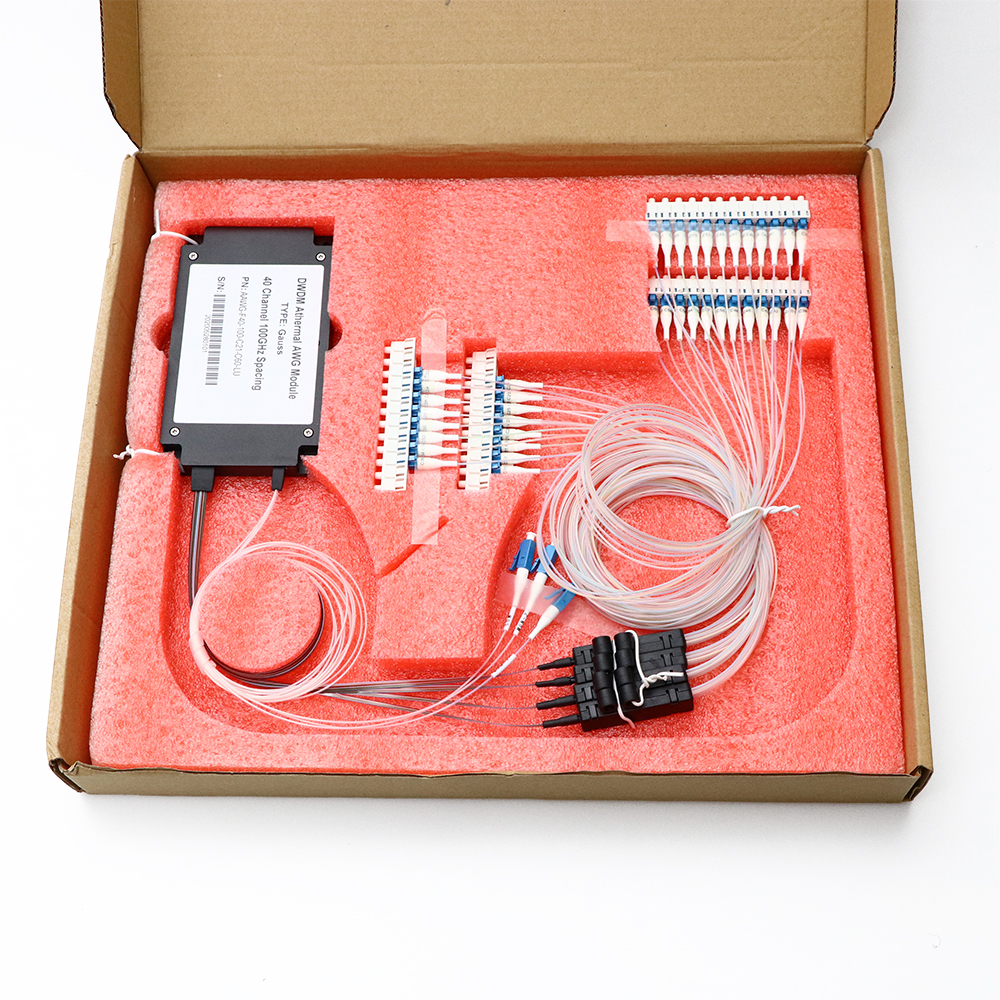

DWDM Mux/Demux Athermal AWG Module 40 Channel AWG

Our rack-mounted 40-channel DWDM multiplexer (Mux) and Demultiplexer (DeMux) chassis provide excellent solution for infrastructure savings by aggregating 40 different wavelengths onto a single fiber. These 1U products are protocol transparent. All 40 channels are in the C-band with spacing of 100 GHz between channels using high quality AWG Gaussian technology.

APPLICATION

DWDM Metro and Long Haul Networks Fiber savings for Data Centers connectivity

FEATURES

High isolation Low insertion loss Dual power supply Can be management by console and NMS Expoxy-free optical path Low total integrated crosstalk Excellent stability & reliability Excellent wavelength accuracy & stability Athermal design

Customized Athermal AWG Dwdm Mux Demux Module 40CH 100GHz Flat Top

Parameter	Value
Number of Channels	40
Channel Spacing	100Ghz
Operating Wavelength	C-band
Passband Frequency	±0.1nm
Wavelength Accuracy	±50pm
Insertion Loss	<6.0dB
Consistency of Insertion Loss	<1.2dB
Insertion Loss Flatness	<0.5dB
0.5dB Passband	>0.2nm
1dB Passband	>0.4nm
3dB Passband	>0.6nm
20dB Passband	<1.2nm
Adjacent Channel Isolation	≥25dB
Non-Adjacent Channel Isolation	≥30dB
Total Crosstalk	22 dB
Return Loss	≥40dB
Polarization Dependent Loss	<0.5ps
Polarization Mode Dispersion	<0.5ps
Maximum Load Optical Power	24dBm
Monitoring Range of Optical Power	-35dBm ~ +23dBm
Connector Form	LC/UPC
Operating Temperature	-10~+65℃
Relative Humidity	95%
Dimensions	19-inch 1U rack (440 x 220 x 44mm)
