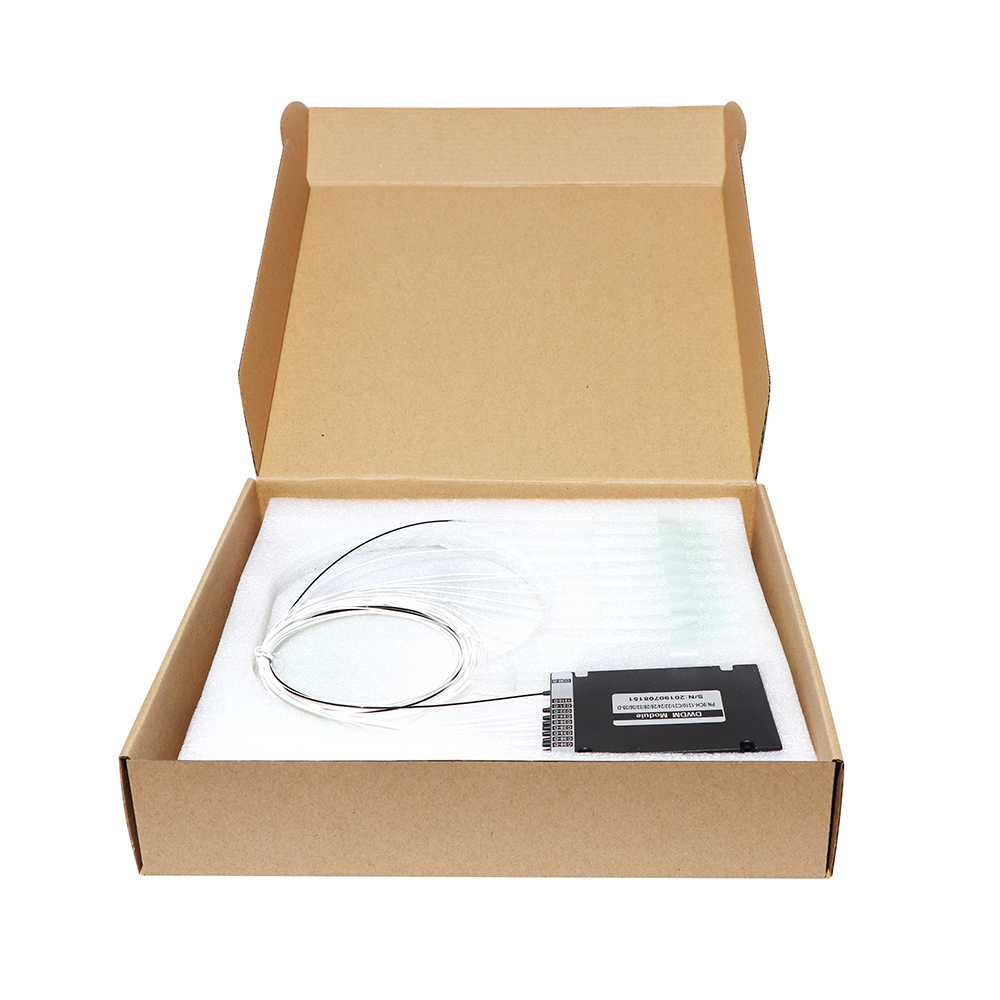

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux

Product Description

4CH 8CH 16CH 100GHz DWDM Module 8 Channel 16 Channel Mux Demux DWDM

DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

16CH 100GHz WDM Wavelength Division Multiplexing , 8 Channel 16 Channel DWDM Mux

Parameter

4-Channel

8-Channel

16-Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength(nm)

ITU 100GHz Grid

Channel Spacing(GHz)

100(0.8nm)

Channel Passband (@-0.5dB bandwidth(nm)

>0.25

Insertion Loss(dB)

≤1.8

≤3.7

≤5.5

Channel Uniformity(dB)

≤0.6

≤1.0

≤1.5

Channel Ripple(dB)

<0.3

Isolation(dB)

Adjacent

N/A

>30

N/A

>30

N/A

>30

Non-adjacent

N/A

>40

N/A

>40

N/A

>40

Insertion Loss Temperature Sensitivity(dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss(dB)

<0.1

<0.15

Polarization Mode Dispersion(ps)

<0.1

Directivity(dB)

≥50

Return Loss(dB)

≥45

Maximum Power Handling(mW)

300

Opterating Temperature(℃)

-5~+75

Storage Temperature (℃)

-40~+85

Package dimension(mm)

A: L100×W80×H10

B: L120×W80×H18

C: L141×W115×H18
