20KM SC Single Mode Fiber Optic Media Converter 4 Port Simplex Duplex Type

Ask Lasest Price
Model Number :	10/100/1000 Media converter
Brand Name :	ODM/OEM
Supply Ability :	20000 Set/Sets per Day
Price :	$3.50 - $15.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

20KM SC Single Mode Fiber Optic Media Converter 4 Port Simplex Duplex Type

10/100/1000M 20KM SC Single Mode Simplex Duplex Fiber Optical GPON Ethernet Media Converter Media Converter 4 Port

Product Description

We have over 100 models of Managed and Unmanaged Media Converters to extend copper to fiber, multimode to multimode and multimode to single mode fiber. To choose the best Media Converter for your project, please choose whether you require a Copper to Fiber Converter or a Fiber to Fiber Converter.

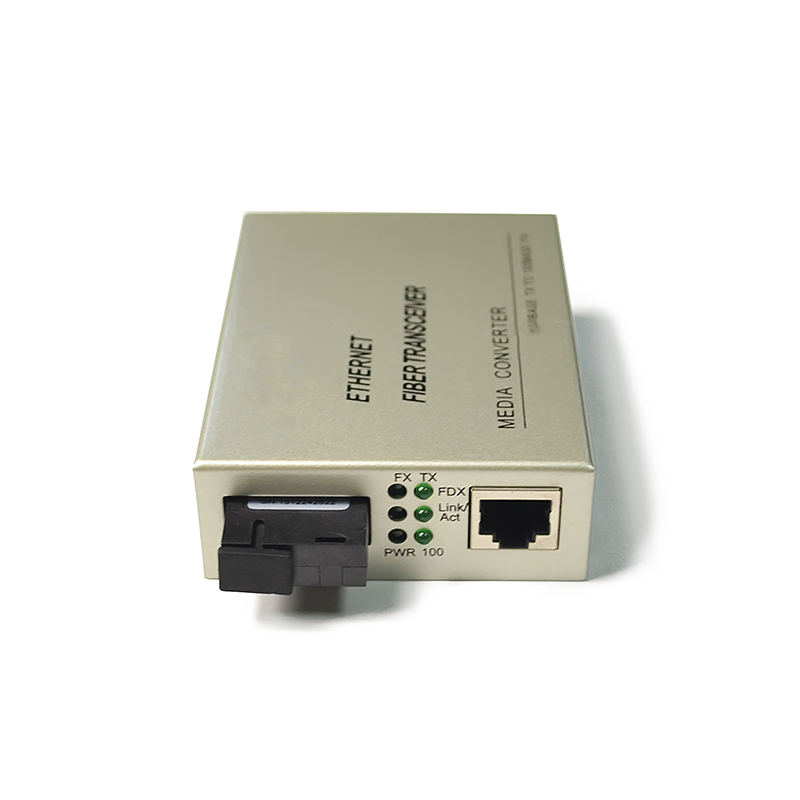

10/100/1000M Singlemode duplex SC Fiber Optic Media Converter

20KM SC Single Mode Fiber Optic Media Converter 4 Port Simplex Duplex Type

APPLICATIONS

A fiber media converter is a simple networking device that makes it possible to connect two dissimilar media types such as twisted pair with fiber optic cabling.
Used in interconnecting fiber optic cabling-based systems with existing copper-based, structured cabling systems.
Used in metropolitan area network (MAN) access and data transport services to enterprise customers.

FEATURES

Extend network distances up to 160km
onduct 10/100/1000/2500/10000 Ethernet Rate Conversion
SC, LC and ST fiber connector options
SX, FX, LX, EX, ZX, BX fiber support
Multimode and single mode fiber
10BaseT, Fast Ethernet Gigabit and 10G to fiber
Advanced Features : Link Pass-Through, Far-End Fault, Auto-MDIX, Fiber Fault Alert, Loopback
Manage via SNMP, CLI- Telnet/SSH, Internet Browser
PoE Media Converters provide PoE PSE power injection over UTP Ethernet
SFP Media Converters with pluggable fiber optic ports for use with MSA compliant SFPs.
Managed Media Converters with extensive security and network integration features
Industrial Temperature Media Converters for equipment in -40C to +75C operating temperatures

MINI 10/100/1000M SC Media Converter

10/100/1000M Media Converter

POE 10/100/1000M 2 RJ45 Port Media Converter

10/100M 8 Fiber Port 2 RJ45 Media Converter

10/100/1000M 1 Fiber Port 8 RJ45 Media Converter

10/100/1000M 1 Fiber Port 16 RJ45 Media Converter

1100SS Serial Media Converter

GAS-2 Media Converter

Forwarding Mode	Store-and-Forward
LED Indicators	Power, FX 100, Link/Act, TX 100, FDX, Link/Act
Power Supply	Input:AC 100~250V	Output:DC 5V 1A
		(default) or Input:DC: -36V~-72V
		Output:DC 5V 1A (Optional)
Power Consumption	5W
Working Environment	Working temperature: -10~55℃	Storage temperature: -20~75℃	Relative Humidity: 5%~95 %( no condensation)
		Storage temperature: -20~75℃
		Relative Humidity: 5%~95 %( no condensation)
Installation	DIN-Rail or Wall mounts,Optional,Default device is not
MTBF	More than 100000 hours
Network Protocols	IEEE802.3u
		10/100Base-TX
		100Base-FX
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter)	100BASE-TX: Cat5 or later UTP(≤100 meter)	1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode:550M- 2KM	Single-mode: 20/40/60/80/100KM
Packing List	1× Media Converter	1×User Manual	1×power adapter

Main Products

Fiber Optic Cable

Patch Cord&Pigtail

MPO/MTP

FTTX Cable Assembly

PLC Splitter

Fast Connector

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or
label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect
quality management system, all of our products were 100% tested
before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working
days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as
Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as
LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low
price samples for you to test and check quality. Mixed samples are
acceptable.
