FTTX FTTH Fiber Cable Accessories Tool Kit With Optical Power Meter Visual Fault Locator

Ask Lasest Price
Model Number :	WOT-200
Brand Name :	ODM/OEM
Certification :	RoHS, CE
Price :	$120.00/sets 5-99 sets
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

FTTX FTTH Fiber Cable Accessories Tool Kit With Optical Power Meter Visual Fault Locator

Fiber Optic Tool Kit with Optical Power Meter and Visual Fault Locator and FC-6S Fiber Cleaver ftth fiber optic tools

Supply termination fiber optic tool kit with power meter WOT-200

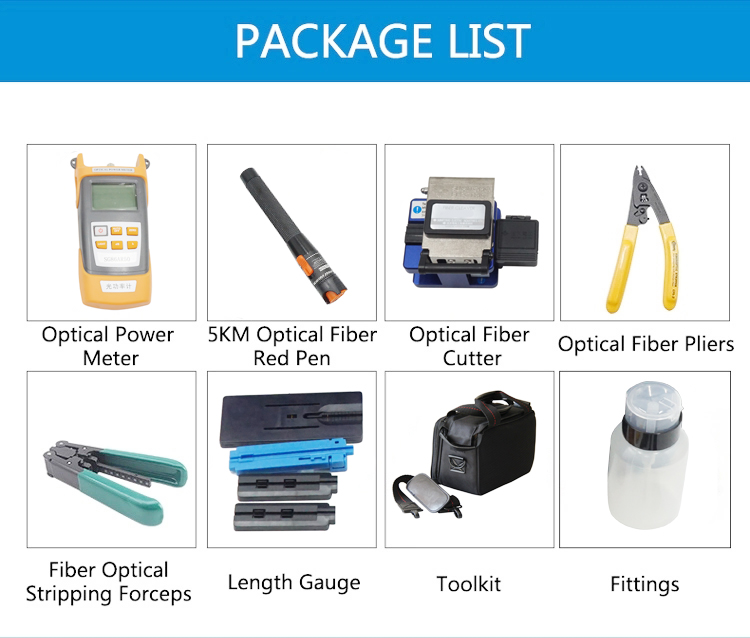

1.This is a Fiber Optic FTTH Tool Kit.

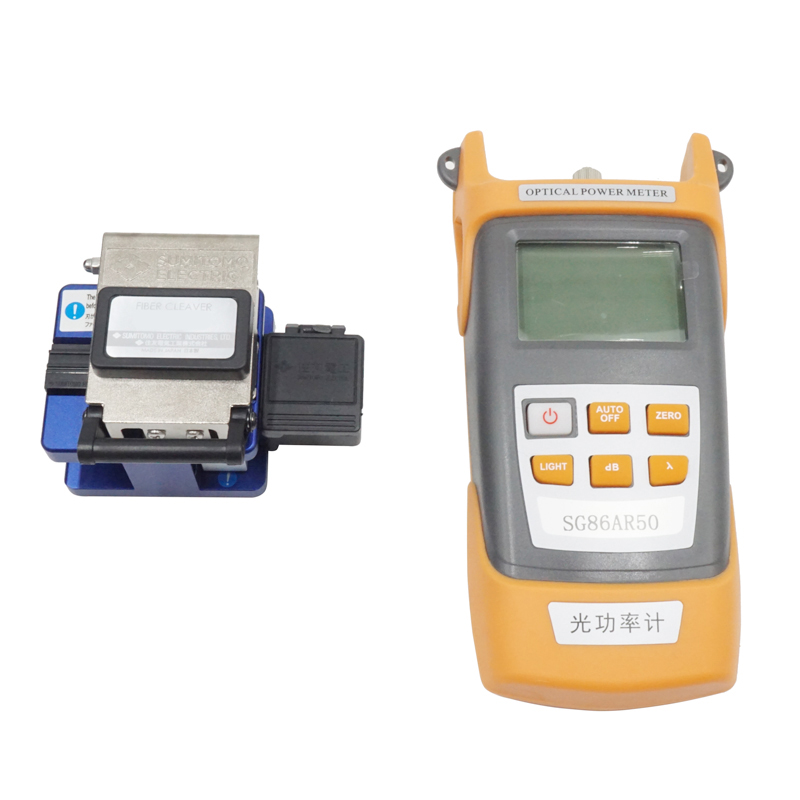

2.Optical Power Meter:Support 7 wavelength testing,support timing shutdown, with background lighting.

3.5km Red Light Pen:Sufficient light source,stable performance,metal material,universal interface.

4.Wire Stripper:Carrying scale,suitable for stripping the outer skin of 2mm and 3mm indoor optical cables.

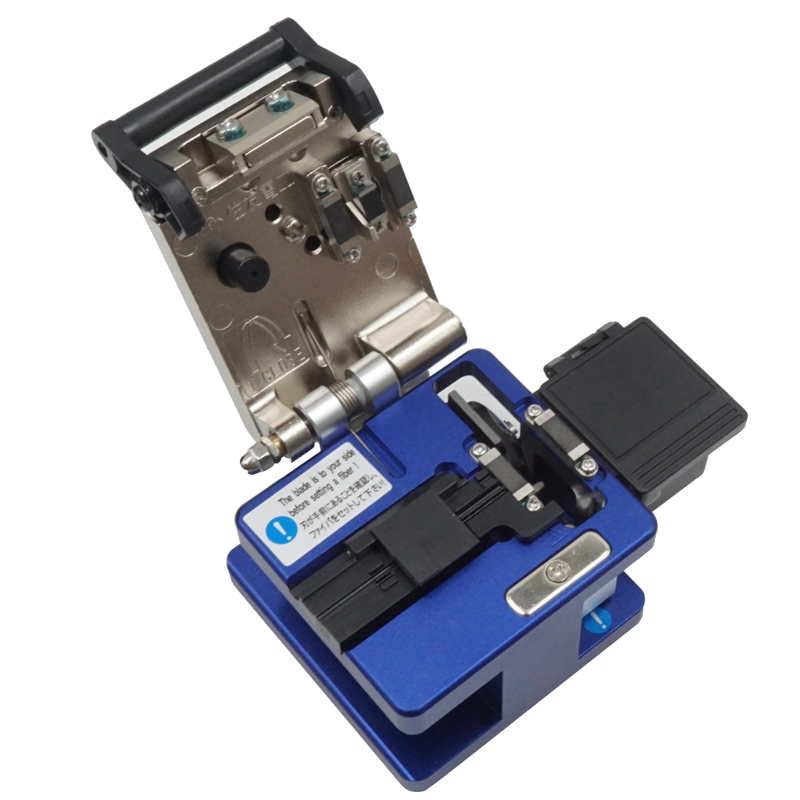

5.Fiber Cleaver:Automatic springback, adopt original imported slide rail, ensure the stability and service life othe cutter.

6.Miller Clamp:Easy to scratch the coating,Do not damage the exposed fiber.

7.Fixed length device:Optical fiber quick connector essential tool cold connection, connection dual purpose. It is

mainly used to peel rubber cover.

8.Alcohol Bottle:180ML pressed.Spill proof,drop proof.

Optical Power Meter Connector Type	SC/FC/ST
Power Meter	(-70)-(+10)dBm
Wavelength	820/980/1300/1310/1490/1550/1625/1650nm
Fiber Cleave	FC-6S
Applicable fibers	singlemode
Fiber Diameter	125um
Coating Diameter	250um-900um
Typical Cleave Angle	Within 1 Degress
Cleave Length	9-18mm(single Fiber-0.25mm coating)
	10-18mm(single Fiber-0.9mm coating)
	Blade Life Time:36000Cleave(3000 per blade position)
Visual Fault Locator	5MW
Fiber Stripping pliers	Two Hole Stripper Plier For Miller
Warranty	1year

FTTX FTTH Fiber Cable Accessories Tool Kit With Optical Power Meter Visual Fault Locator

This tool kits is ideal for optical fiber fusion splicing. It includes all the most frequently-used tools and it is convenient to peel off the cable outer sheath and then to test.
