10 Pcs Multipurpose Fiber Optic Termination Kit Tool For Fusion Splicing

Ask Lasest Price
Model Number :	fiber optic tool kit
Brand Name :	ODM/OEM
Supply Ability :	1000 Piece/Pieces per Week
Price :	$53.00/pieces 10-99 pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union
MOQ :	10 Sets

Add to Cart

Product Details
Company Profile

10 Pcs Multipurpose Fiber Optic Termination Kit Tool For Fusion Splicing

Factory price FTTH tool bag fiber optic tool kit optical fiber termination tool

Fiber Optic Tool kits

This tool kits is ideal for optical fiber fusion splicing. It includes all the most frequently-used tools and it is convenient to peel off the cable outer sheath and then to test. It is economical and practical for construction operators

Optical Power Meter Connector Type	SC/FC/ST
Power Meter	(-70)-(+10)dBm
Wavelength	820/980/1300/1310/1490/1550/1625/1650nm
Fiber Cleave	FC-6S
Applicable fibers	singlemode
Fiber Diameter	125um
Coating Diameter	250um-900um
Typical Cleave Angle	Within 1 Degress
Cleave Length	9-18mm(single Fiber-0.25mm coating)
	10-18mm(single Fiber-0.9mm coating)
	Blade Life Time:36000Cleave(3000 per blade position)
Visual Fault Locator	5MW
Fiber Stripping pliers	Two Hole Stripper Plier For Miller
Warranty	1year

10 Pcs Multipurpose Fiber Optic Termination Kit Tool For Fusion Splicing

Accessories

Optical Power Meter

Support 7 wavelength testing, support timing shutdown, with background lighting. Good interface design and about 48h stand by.

Fiber Cleaver

Compact body& light weight Simple operation, recommended for FTTH cold welding, single core fiber for single mode and multimode cutting; 16 cutting end face; blade long life, etc

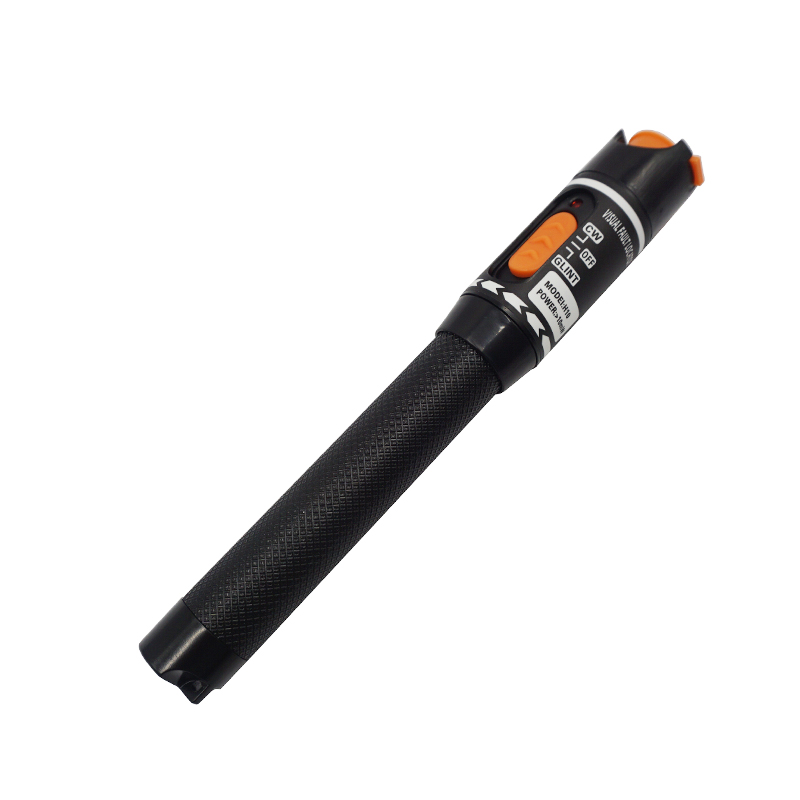

Visual Fault Locator

VFL use 650nm semiconductor laser as a light emitting device, through the constant current drive, transmit the red light which power is stable. It is an indispensable tool for fiber optic construction.

Fiber Optic Stripper

The CFS-2 Fiber stripper is used to peel 250μm coating of 125μm fiber. The 1.98mm open pore at the top uses to peel 0.9mm tube of fiber optic pigtail

Kevlar Scissor

Ideal for cutting aramid yarn (also called Kevlar) in fiber optic cables

Fiber Optic Stripper

Apply to 2mm, 3mm indoor cable sheath peeling.
The cutting depth can be adjusted, to ensure not to hurt the fiber.
Light weight, small volume, easy to operate

Cleaning Paper

Size:9.5x9.5cm

Squeezed type alcohol bottle

The bottle is a practical, durable, superior alcohol bottle, suitable for cotton balls, wipes,etc.,

Fixed length device.

Peel the fiber sheath first.
Unfold the guide bar and put the stripped fiber into the slot of the stripper.

No.	Tool name	Quantity
1	FOC-X0 fiber optic cleaver	1
2	QT-AUA-9 optical power meter	1
3	QT-VFL650-10MW, 10km red light pen	1
4	CFS-2 Fiber Optic Stripper	1
5	Miller pliers/fiber cutter	1
6	black tool bag	1
7	WB-CS-01 drop cable stripper	1
8	Alcohol bottle	1
9	Fiber guiding rail	2
10	Fiber fixed length tool	1
11	black tool bag	1

Application

1.FTTx construction

2.Optical network construction

3.LAN, WAN, and Metro Networks

4. CATV Networks
