FTTH Fiber Optic Pen Type Visual Fault Locator 10mw For 650nm

Ask Lasest Price
Model Number :	BML-VFL650-10MW
Brand Name :	ODM/OEM
Price :	$13.00/pieces 20-99 pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union
MOQ :	100pcs

Add to Cart

Product Details
Company Profile

FTTH Fiber Optic Pen Type Visual Fault Locator 10mw For 650nm

Supply FTTH fiber optic tool light source 10mw pen-type visual fault locator for 650nm

Optical Fiber Pen-type Red Light Source

Pen-based red light source, which use 650nm semiconductor laser as a light emitting device, through the constant current drive, transmit the red light which power is stable. After connecting with optical interface, the red light can enter into the multimode and single mode fiber, achieve detecting function of optical fiber fault. It is an indispensable tool for fiber-optic construction, fiber-optic network maintenance, optical device production and research.

Applications

1.Fiber fracture and bending fault location;

2.OTDR shadow of the failed inspection;

3.End to end fiber identification;

4.Maintenance in telecom, CATV;

5.Test Lab of optical fibers;

6.Fiber routing and continuity checking in optical networks.

Specifications

Wave output	650nm
Fiber connectot	universal-connector
Operating Temperature(°C)	0~+60
Storage Temperature(°C)	-20~+70
Battery life	≥40H(1mW)
Battery stype	LR6(AA) 1.5V*2
Size	175mm26mm26mm
Weight	170g

Features

1. 2.5mm universal connector, for 1.25mm connectors;

2. FC (Male)-LC (Female) convertor can be provided on requests;

3. Operates either in CW or Pulsed;

4. Constant output power;

5. Lower Battery warning;

6. Long battery life (up to 60 hours);

7. Crash-proof and dust-proof design for laser head;

8. Laser case ground design prevents ESD damage;

9. Burning testing to ensure the reliability;

10. Portable and rugged, easy to use;

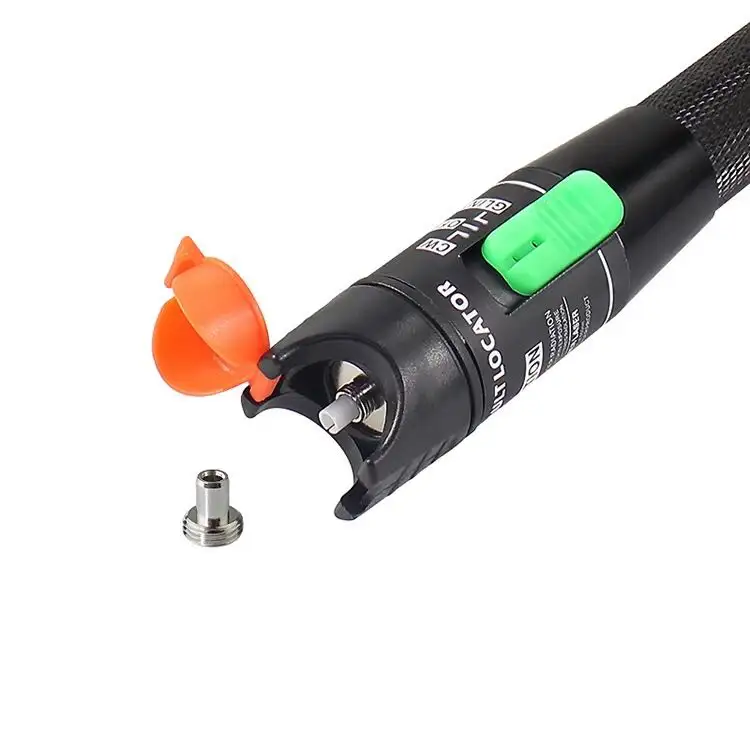

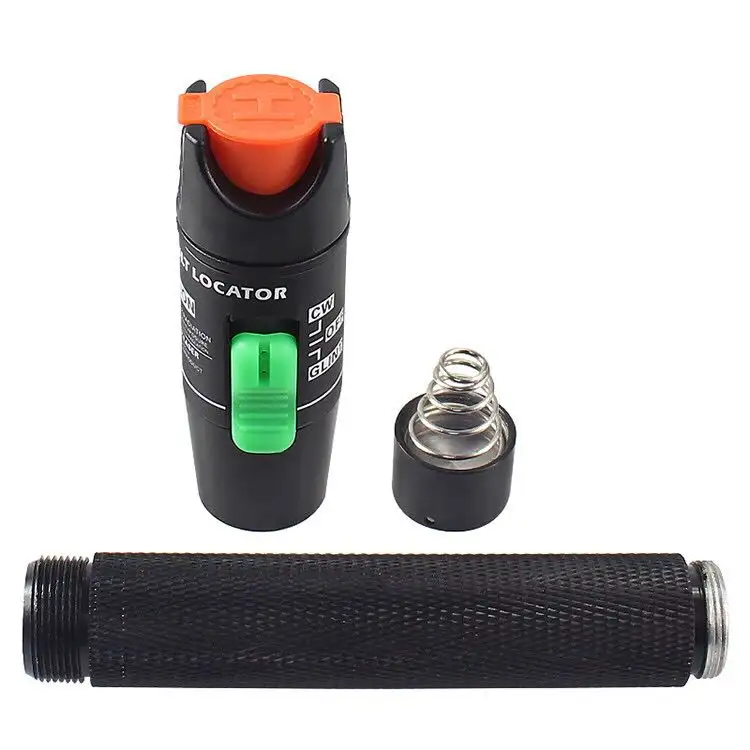

Detailed Image

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.
