4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable

Ask Lasest Price
Model Number :	GJBFJV, GJBFJV
Brand Name :	OEM
Supply Ability :	10000 Kilometer/Kilometers per Day
Price :	$0.50/meters 5000-49999 meters
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable

Products Description

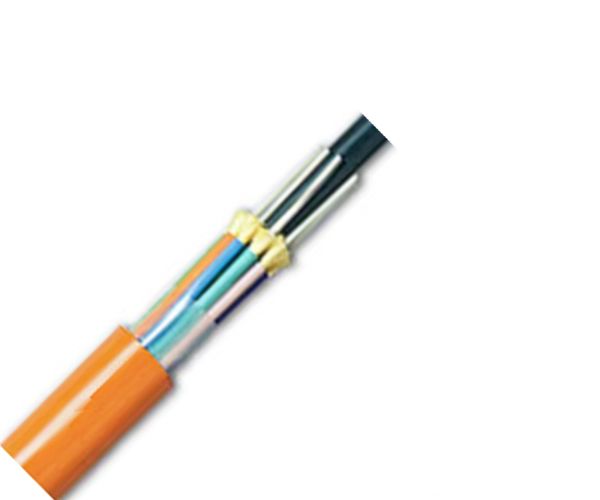

Indoor singlemode multicore Tight buffer Branch cable GJPFJV GJBFJV break out cable 4 8 12 24 core fiber optic cable

GJBFJV Break out Cable

GJBFJV Break out Cable contains several tight-buffered fibers , kevlar / aramid strength members to stiffen the cable and prevent kinking . Three cable fire ratings , Riser / Plenum / LSZH for your choice to meet differenst installation environments.

Applications:

1.Indoor horizontal wiring, building vertical wiring, LAN network. 2.The standard fiber core can be directly installed with connectors for connection with equipment. 3·Suitable for floor connection and easy maintenance

Each requirement:

1.Fiber count------- 2/4/6/8/12/16/24/48. 2.Characteristic of tight buffered-----OD: 0.87±0.05mm. 3.Aramid yarn for round strength. 4.Inner jacket-----OD: 2.0±0.05mm. 5.Central strength member: FRP. 6.Water barrier tape. 7.Out jacket: LSZH.

Fiber account	OD(mm)	Max.tensile Strength(N)			Min.Bending Radius(mm)
		Short-term	Long-term	Dynamic	Static
2	7.5±0.5	660	200	20D	10D
4	7.5±0.5	660	200	20D	10D
6	9.0±0.5	700	200	20D	10D
8	10.5±0.5	800	250	20D	10D
10	11.5±0.5	1000	300	20D	10D
12	12.5±0.5	1200	400	20D	10D
16	13.0±0.5	1200	400	20D	10D
24	15.5±0.5	1200	400	20D	10D
48	20.5±0.5	1800	600	20D	10D

GJPFJV cable

GJPFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath, with dry-type water-blocking materials between fiber and sheath.

4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
