12 Core 24 Core Fiber Cable Patch Cord , Mtp Mpo Patch Cable Om3 Om4 For Qsfp

Ask Lasest Price
Model Number :	MPO
Brand Name :	OEM
Certification :	RoHS,ISO
Supply Ability :	2000 Piece/Pieces per Day
Price :	$14.50 - $30.00/pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

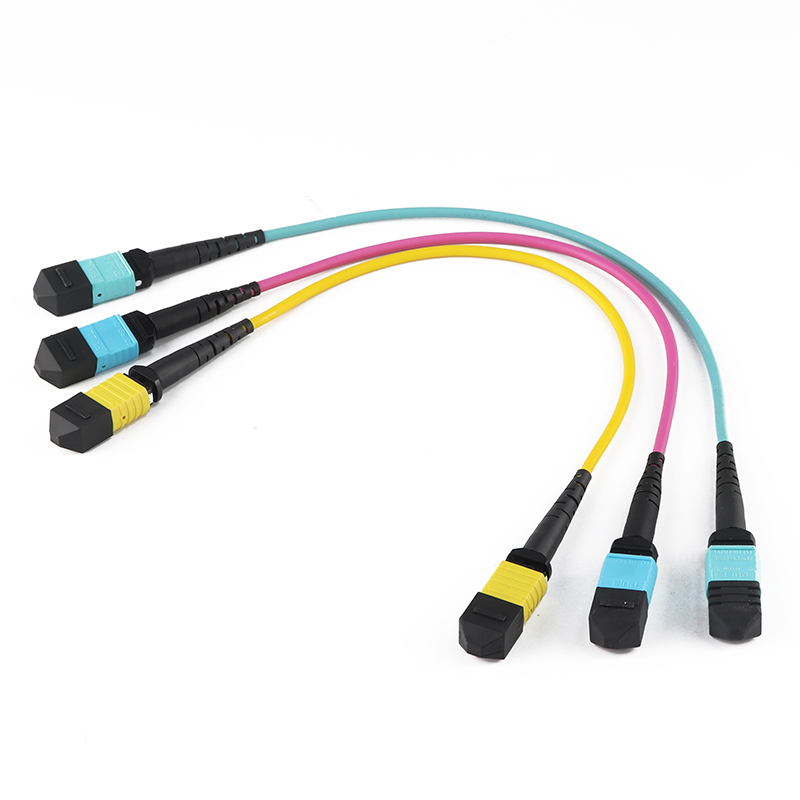

12 Core 24 Core Fiber Cable Patch Cord , Mtp Mpo Patch Cable Om3 Om4 For Qsfp

Product Description

Factory price 8 12 24 Core Om3 Om4 Fiber Optic Mtp Mpo Patch Cord Cable For Qsfp

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

12 Core 24 Core Fiber Cable Patch Cord , Mtp Mpo Patch Cable Om3 Om4 For Qsfp

APPLICATION

Data communication network Optical System Access network Storage area networking fiber channel High density architectures

FEATURES

100% pre-terminated and tested in factory to ensure transfer performance Rapid configuration and networking, reduce installation time Supports 40G and 100G network applications Jacket material: LSZH, OFNR, OFNP available Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Product Parameters

Performance Level					Standard			Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
				24F/APC	≤0.75	≥60	≤0.35	≥60
				48F/APC	≤0.75	≥60
		MM	12F/PC	≤0.50	≥20	≤0.35	≥20
				24F/PC	≤0.50	≥20	≤0.35	≥20
				48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM		≤0.30	≥60	≤0.10	≥60
	SM			UPC	≤0.20	≥50	≤0.10	≥50
		MM	PC	≤0.20	≥30	≤0.10	≥30

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item			Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)			20*OD (Cable Diameter)
Min Bend Radius (Static )			15*OD (Cable Diameter)

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
