Customized 1m SC LC Fiber Patch Cord Cable With 90 Degree Angle Boot

Ask Lasest Price
Model Number :	Fiber Patch Cord
Brand Name :	ODM/OEM
Certification :	RoHS, CE
Supply Ability :	2000000 Piece/Pieces per Quarter
Price :	$0.50 - $2.00/pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Customized 1m SC LC Fiber Patch Cord Cable With 90 Degree Angle Boot

Product Description

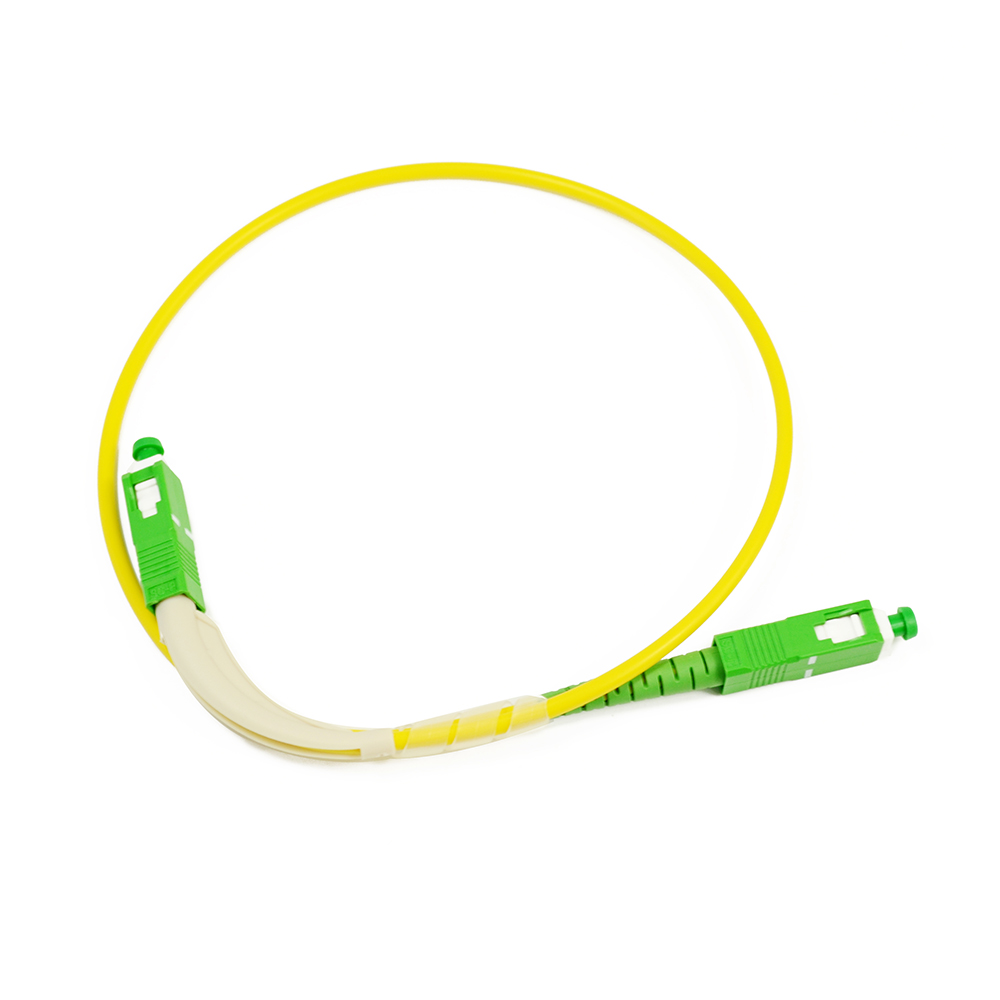

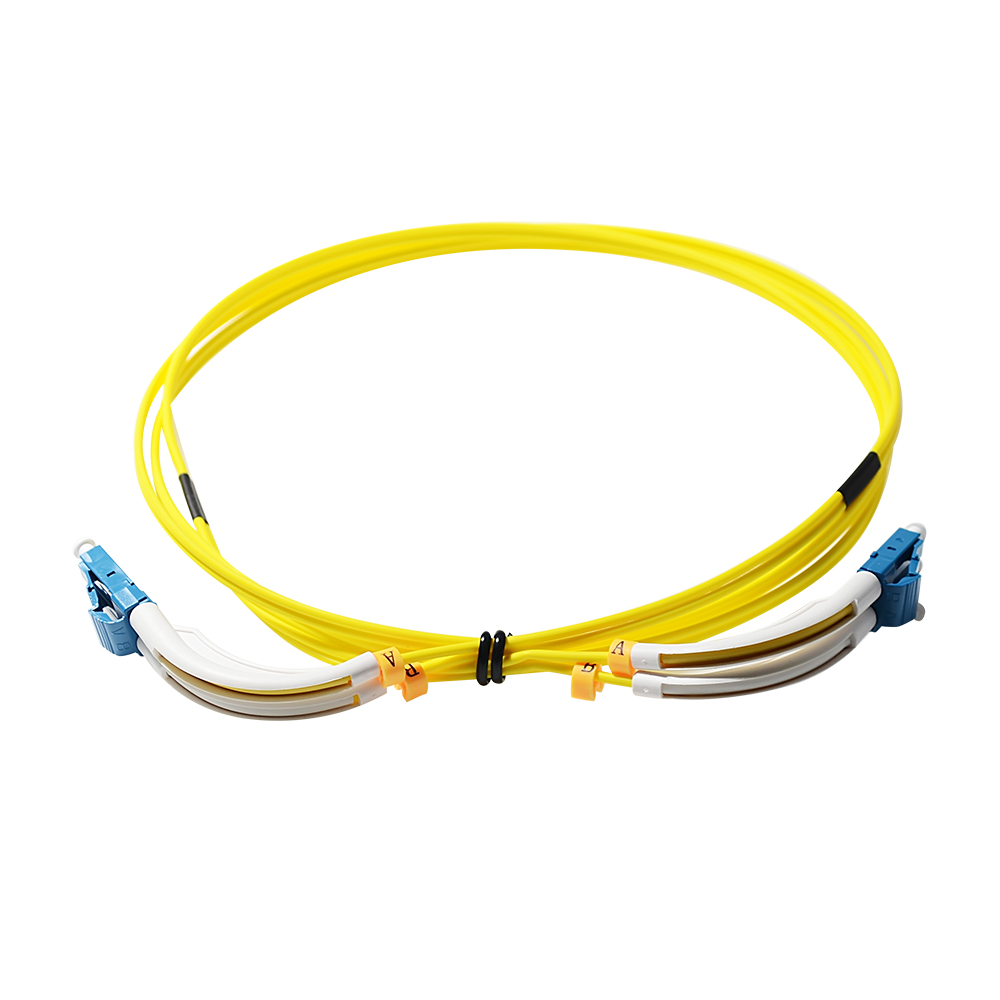

90 degree angle boot SC LC fiber optic patch cord

45/90 degree angled boot fiber optic patch cables have the same performance as regular straight boot patch cables. The only difference is that they have 45/90 degree rubber boot instead of a straight one. All common type of connectors are available with 90 degree boot including SC, ST, LC E2000, FC etc. Unifiber manufactures a whole line of fiber optic patch cords.

APPLICATION

Data Centre Telecommunication networks CATV LAN and WAN FTTX Broadband network

FEATURES

Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability

Parameters	45/90 degree angled boot SC,LC fiber optic patch cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
