Customized Outdoor FTTH Drop Cable G657A1 G657A2 Type Black Color

Ask Lasest Price
Model Number :	GJYXCH
Brand Name :	ODM/OEM
Supply Ability :	100000 Meter/Meters per Week
Price :	$0.03 - $0.039/meters
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Customized Outdoor FTTH Drop Cable G657A1 G657A2 Type Black Color

CABO OPTICO CFOAC-BLI-A/B-CM-01F-AR-LSZH cabo de Fibras opticas drop for Brazil

Describution:

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LSZH sheath.

Application:

All types of fiber cables with different structures
High performance optical network operating
High speed optical routes in buildings (FTTx)
Application in L band

Customized Outdoor FTTH Drop Cable G657A1 G657A2 Type Black Color

Features

1, High tensile of the diameter1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification

Specification

No. of cable							1/2/4/6
Fiber Model							G.657A1
Steel wire	Diameter(±0.03)mm					0.45
Steel wire		NO.					2
Steel wire	Diameter(±0.03)mm					1.0
Outer Sheath	Material					LSZH
Outer Sheath		Color					Black
Cable size(±0.2)mm							2.0×5.0
Cable Weight(±2)kg/km							21
Allowable Tensile Strength			Short Term	N	600
Allowable Tensile Strength				N	Long Term		300
Allowable Crush Resistance			Short Term	N/100mm	2200
Allowable Crush Resistance				N/100mm	Long Term		1000
Min. bending radius			Without Tension			10×Cable-φ
Min. bending radius				Under Maximum Tension			20×Cable-φ
Temperature range (℃)			Installation			-20~+60
				Transport&Storage			-40~+70
				Operation			-40~+70

Related Products

Our Company

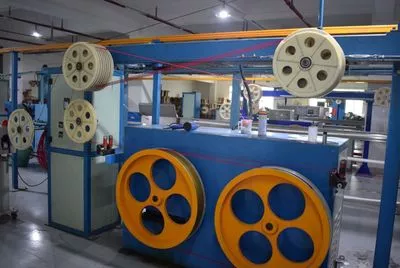

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high
technology, which are full of professional and excellent sales
team, efficient and sound management, competitive price, wide and
superior channels, as well as high-quality and flexible service.

FAQ & Contact

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
