Micro G652D Fiber Optic Cable 2 Core Single Mode 3mm Diameter

Ask Lasest Price
Model Number :	GCYFXTY
Supply Ability :	1000 Kilometer/Kilometers per Week
Price :	$0.20 - $0.40/meters
Brand Name :	ODM/OEM
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Micro G652D Fiber Optic Cable 2 Core Single Mode 3mm Diameter

Supply Optic Fiber Micro Cable G652D 2 Core Single Mode Micro Fiber Optic Cable

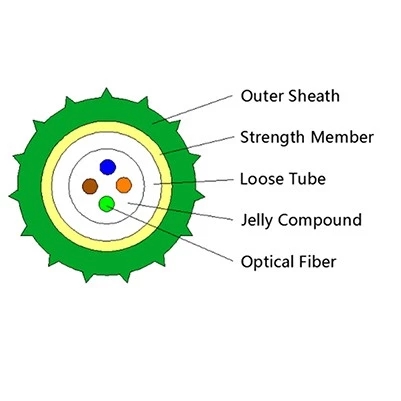

Central tube, Air-blown Micro-cable

1. The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.

2. The tubes are filled with a water-resistant filling compound.

3. Aramid yarn located between central tube and outer sheath as a non-metallic strength member.

4. The cable is completed with a HDPE sheath.

Micro G652D Fiber Optic Cable 2 Core Single Mode 3mm Diameter

Feature

* Non-metal design can prevent the cable from radio interference and magnetic wave interference.

* Central tube filling compound ensure good moisture resistance performance.

* High dense fiber packed,small diameter and light weight; it`s easy for blowing installation progress.

*Good flexibility.

*Specially designed compact structure is good at preventing loose tubes from shrinking.

Technical Data

No. of cable							/	2~12	12~24
Fiber type							/	G.657
Loose Tube					Material	mm	PBT
							Diameter (±0.05mm)		1.6	2.4
							Thickness (±0.03mm)		0.3	0.4
							Max fiber		2-12	14-24
Non metallic strength					Material	/	Aramid yarn
Outer Sheath					Material	mm	HDPE
							Thickness		0.5(nominal)0.40(min.)
							Color		Black.
Cable Diameter(±0.2mm)							mm	2.5	3.5
Cable Weight(±10.0kg/km)							kg/km	3.5	4.5
Attenuation coefficient			1310nm			dB/km	≤0.35
Attenuation coefficient				1550nm		dB/km		≤0.21
MAX. Tensile Strength							N	120	150
MAX. Crush Resistance							N/ 100mm	1000
Min. bending radius	Without Tension					mm	10.0×Cable-φ
Min. bending radius		Under Maximum Tension				mm		20.0×Cable-φ
Temperature range (℃)	Installation					℃	-10℃+40℃
		Transport&Storage						-40℃+60℃
		Operation						-30℃+50℃

Package

Our Company

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

FAQ & Contact Us

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
