12 Core 24 Core Fiber Optic Cable With Two Loose Tube FRP LSZH Sheath

Ask Lasest Price
Model Number :	GJXZY
Brand Name :	ODM/OEM
Supply Ability :	1000 Kilometer/Kilometers per Week
Price :	$0.20 - $0.50/meters
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

12 Core 24 Core Fiber Optic Cable With Two Loose Tube FRP LSZH Sheath

12 24 core fiber optic cable two loose tube FRP LSZH sheath GJXZY optical fiber network

Fiber Optic Cable GJXZY- 12 core/24 core-G657A1 – loose tube – 2FRP- LSZH

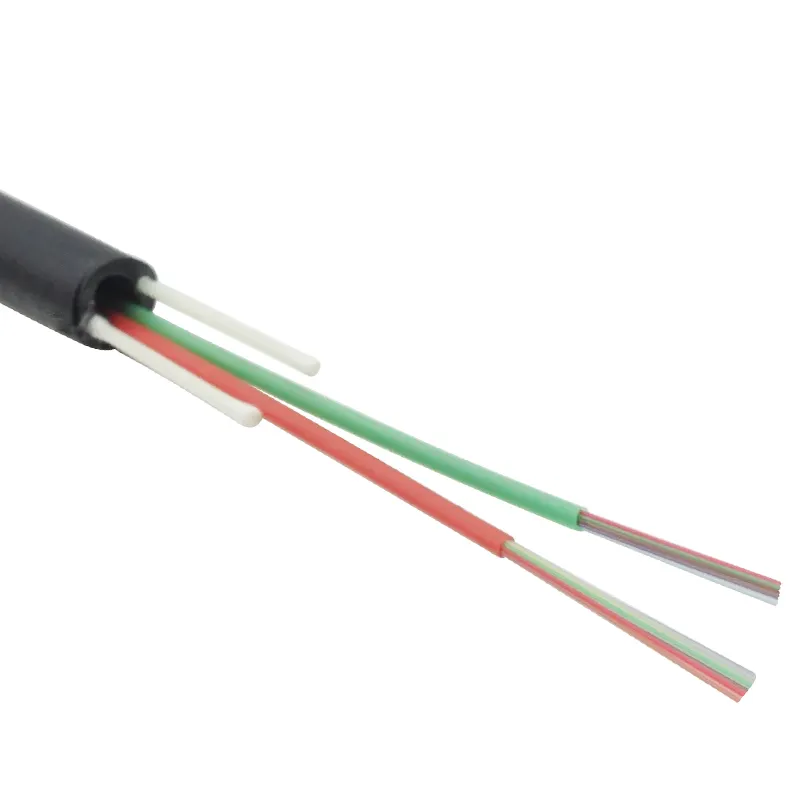

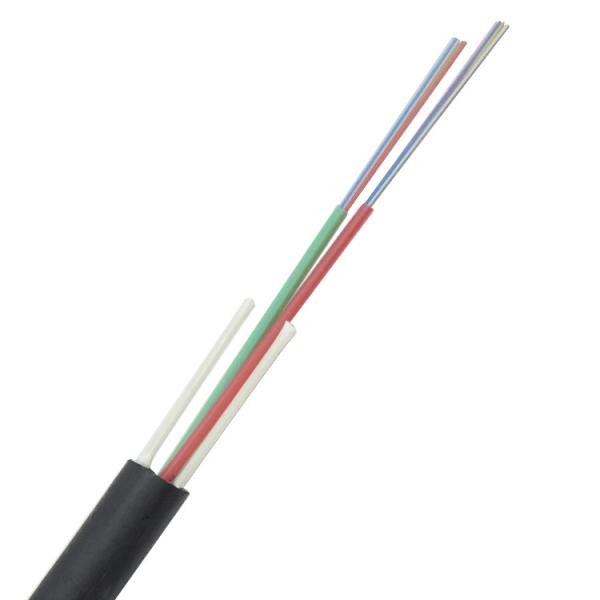

1.The structure of the cable is to insert 250 micron colored optical fibers into a loose tube made of high modulus materials and fill the loose sleeve with waterproof compounds. 2..Two parallel FRPs are placed on both sides to extrude sheathed cables 3.Finally the LSZH sheath cable is extruded.

Specifications

No. of cable					12-24
Fiber Model					G.657A1
Strength Member	Material			FRP
Strength Member		Diameter(±0.05)mm			1.0
Loose Tube	Material			LSZH
		Diameter(±0.05)mm			1.4
		Thickness(±0.03)mm			0.15
		The Max.Core NO./Tube			12
Outer Sheath	Material			LSZH
Outer Sheath		Thickness(±0.1)mm			2.0
Cable Diameter(±0.2)mm					7.0
Cable Weight(±3kg)					36
Min. bending radius			Without Tension	10.0×Cable-φ
Min. bending radius				Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)			Installation	-20~+60
				Transport&Storage	-40~+70
				Operation	-40~+70

MORE PICTURES

12 Core 24 Core Fiber Optic Cable With Two Loose Tube FRP LSZH Sheath

We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.

We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Packaging detail: 2km / export wooden drum (your request is available )

Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st

This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.

FAQ & Contact Us

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
