GYTA53 Outdoor Optical Fiber Cable 12 Core With PE Sheath APL Steel Wire

Ask Lasest Price
Model Number :	GYTA53
Brand Name :	OEM/ODM
Certification :	RoHS
Supply Ability :	100000 Meter/Meters per Month
Price :	$0.20 - $0.40/meters
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

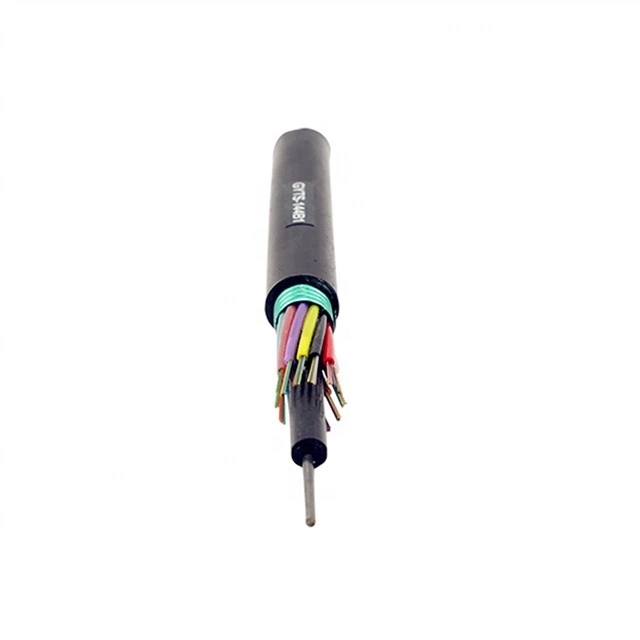

GYTA53 Outdoor Optical Fiber Cable 12 Core With PE Sheath APL Steel Wire

Outdoor PE sheath APL steel wire CMS direct buried armoring G.652D 12 core fiber optic cable GYTA53

Product Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to
protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

FEATURE

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---APL moisture barrier
---PSP enhancing moisture-proof
---Water-blocking material

Specification

No. of cable			12	24	48
Fiber Model			G.652D
Design (StrengthMember+Tube&Filler)			1+5
Central Strength Member	Material	Steel Wire
Central Strength Member		Diameter(±0.5)mm	1.4
Loose Tube	Material	PBT
		Diameter(±0.06)mm	1.72	1.72	2.0
		Thickness(±0.03)mm	0.30	0.30	0.32
		The Max.Core NO./Tube	6	6	12
Filler Rope	Material	LDPE
		Diameter(±0.06)mm	1.7	1.7	2.0
		NO.	3	1	1
Moisture Barrier	Material	Polymer Coated Aluminum Tape
Moisture Barrier		Thickness(±0.03)mm	0.20
Inner Sheath	Material	MDPE
Inner Sheath		Thickness(±0.2)mm	0.9
Armoring	Material	Polymer Coated Steel Tape
Armoring		Thickness(±0.2)mm	0.22
Water Bloaking Layer	Material	Filling Compound
Outer Sheath	Material	MDPE
Outer Sheath		Thickness(±0.2)mm	1.8
Cable Diameter(±0.5)mm			12.5	12.5	13.1
Cable Weight(±10)kg/km			152	167	167
Attenuation	1310nm	0.35dB/ km
Attenuation		1550nm	0.21dB/ km
Min. bending radius	Without Tension	12.5×Cable-φ
Min. bending radius		Under Maximum Tension	25.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70

Packing & Delivery

GYTA53 Outdoor Optical Fiber Cable 12 Core With PE Sheath APL Steel Wire

Standard export package
