1x2MM FBT Fiber Optic Splitter Multimode ODM OEM With RoHS Certified

Ask Lasest Price
Model Number :	1x2 MM Multimode Fiber Optical Coupler
Brand Name :	ODM/OEM
Supply Ability :	100000 Piece/Pieces per Day
Price :	$14.00 - $16.00/pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

1x2MM FBT Fiber Optic Splitter Multimode ODM OEM With RoHS Certified

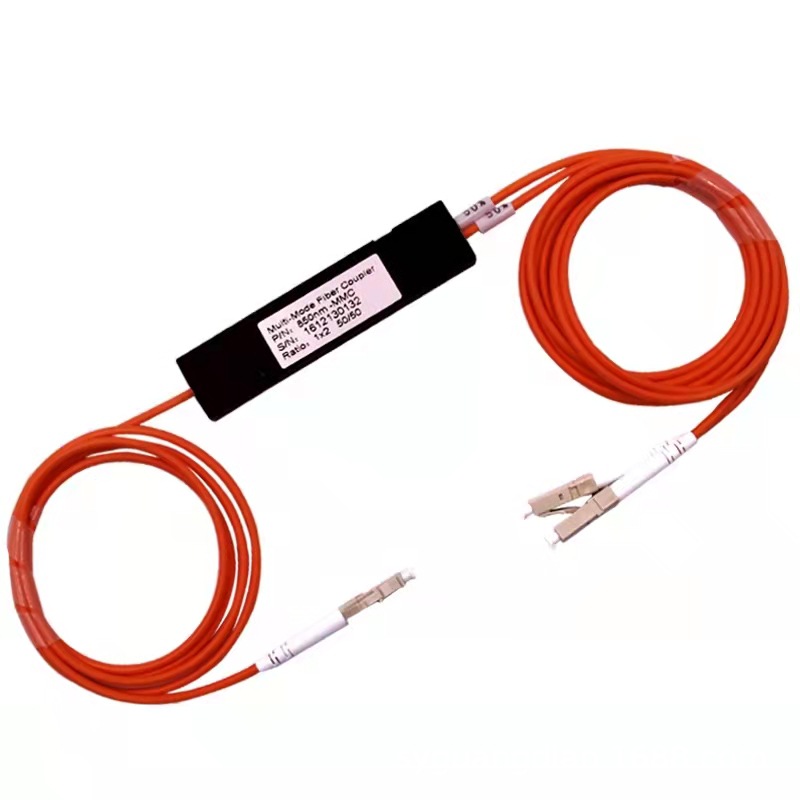

ODM OEM 1x2 MM Multimode Fiber Optical Coupler FBT Fiber Optic Splitter

Description:

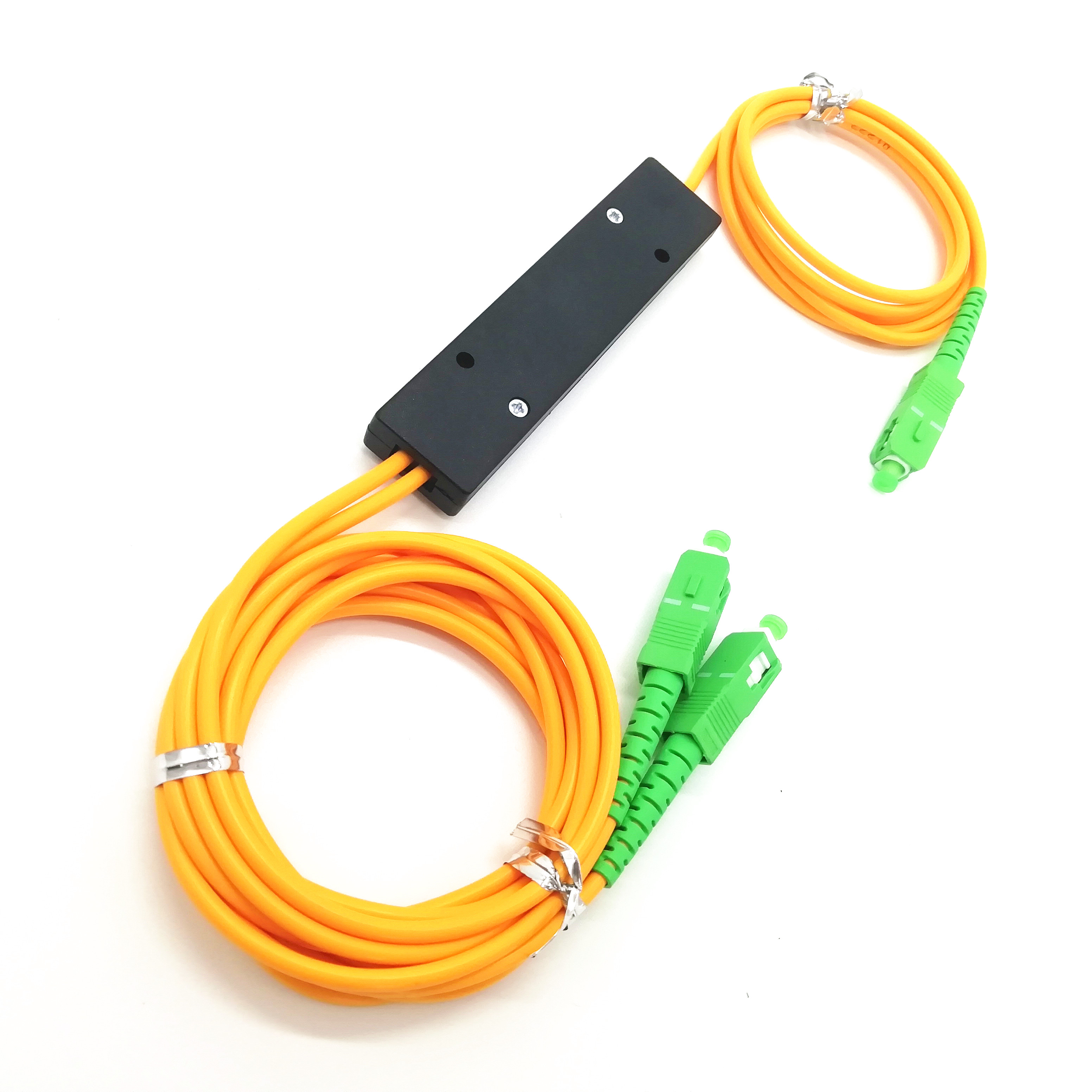

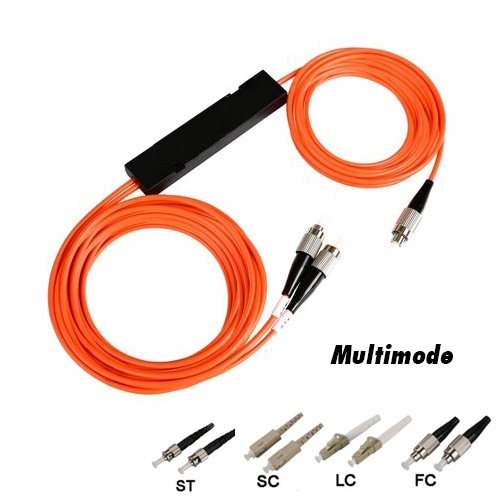

1x(2,4...128) or 2x(2,4...128) (ABS type: No connector, SC/UPC, SC/APC...FC can be choosen).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution
products(outdoor fiber distribution box) or network cabinets. (ABS type: No connector, SC/UPC, SC/APC...FC can be choosen)

1x2MM FBT Fiber Optic Splitter Multimode ODM OEM With RoHS Certified

Product Feactures

*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used

Application

*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON

Specification

Parameter		Unit			Value
Type			Dual-Window Coupler(DWC)		Three-Window Coupler(TWC)
Grade			P	A	P	A
Operating wavelength		nm	1310 and 1550		1310,1490 and 1550
Operating bandwidth		nm	1310/1550±40		1310/1550±40 and 1490±10
Insertion loss	50/50	dB	≤3.6	≤3.8	≤3.6	≤3.8
Polarization Dependent Loss		dB	≤0.15	≤0.2	≤0.15	≤0.2
Temperature Dependent Loss		dB	≤0.2
Directivity		dB	≥55
Return Loss		dB	≥55
Operating Temperature		°C	-40~+85
Storage Temperature		°C	-40~+85

Parameter		Unit			Value
Type			Dual-Window Coupler(DWC)		Three-Window Coupler(TWC)
Grade			P	A	P	A
Operating wavelength		nm	1310 and 1550		1310,1490 and 1550
Operating bandwidth		nm	1310/1550±40		1310/1550±40 and 1490±10
Insertion loss	50/50	dB	≤3.6	≤3.8	≤3.6	≤3.8
Polarization Dependent Loss		dB	≤0.15	≤0.2	≤0.15	≤0.2
Temperature Dependent Loss		dB	≤0.2
Directivity		dB	≥55
Return Loss		dB	≥55
Operating Temperature		°C	-40~+85
Storage Temperature		°C	-40~+85

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

CABLE PRODUCTION LINE

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
