PLC Fiber Splitter 1x2 With Micro Steel Tube SC APC / SC UPC

Ask Lasest Price
Model Number :	*12 fiber optic plc splitter**
Brand Name :	ODM/OEM
Price :	$2.70/pieces 500-999 pieces
Certification :	RoHS, CE
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

PLC Fiber Splitter 1x2 With Micro Steel Tube SC APC / SC UPC

1*2 fiber optic plc splitter with micro steel tube SC APC /SC UPC PLC splitter

Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.

Product Features

PLC Fiber Splitter 1x2 With Micro Steel Tube SC APC / SC UPC

1.Excellent Mechanical,Small Size

2.High Reliability

3.Low insertion Loss and low Polarization Dependent loss

4.High channel counts

5.Excellent Environmental Stability and Widely Used

6.FTTX Deployments(GPON/BPON/EPON)

7. Cable television (CATV)

8. CATV Links

9.Passive optical networks(PON)

Application

1, Split ratio 1:2,

2, Wide operating band: 1260-1650 nm

,
3, 1.5 m long optical cables terminated

with SC connectors,

4, Compact size,

5, High stability.

Specifications

1xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)					55/50
Operating Temperature					-40~+85
Directivity (dB)					≥ 55
Storage Temperature					-40~+85

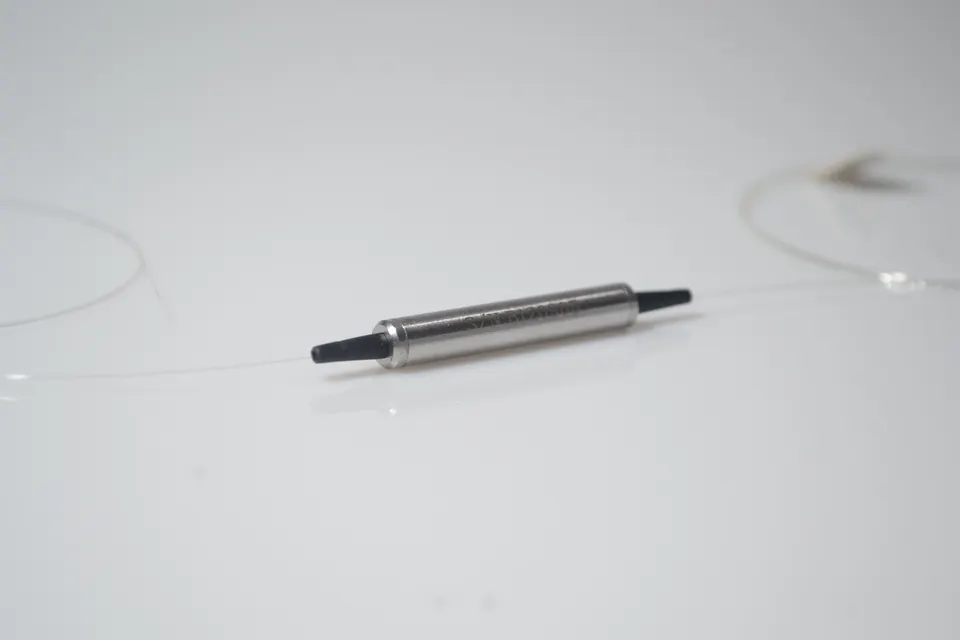

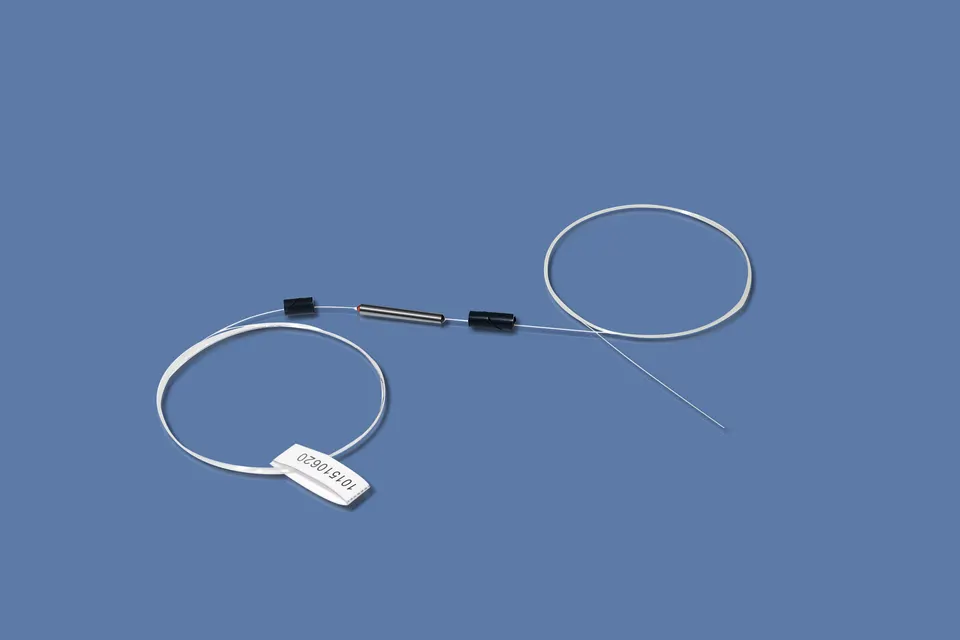

Product Picture

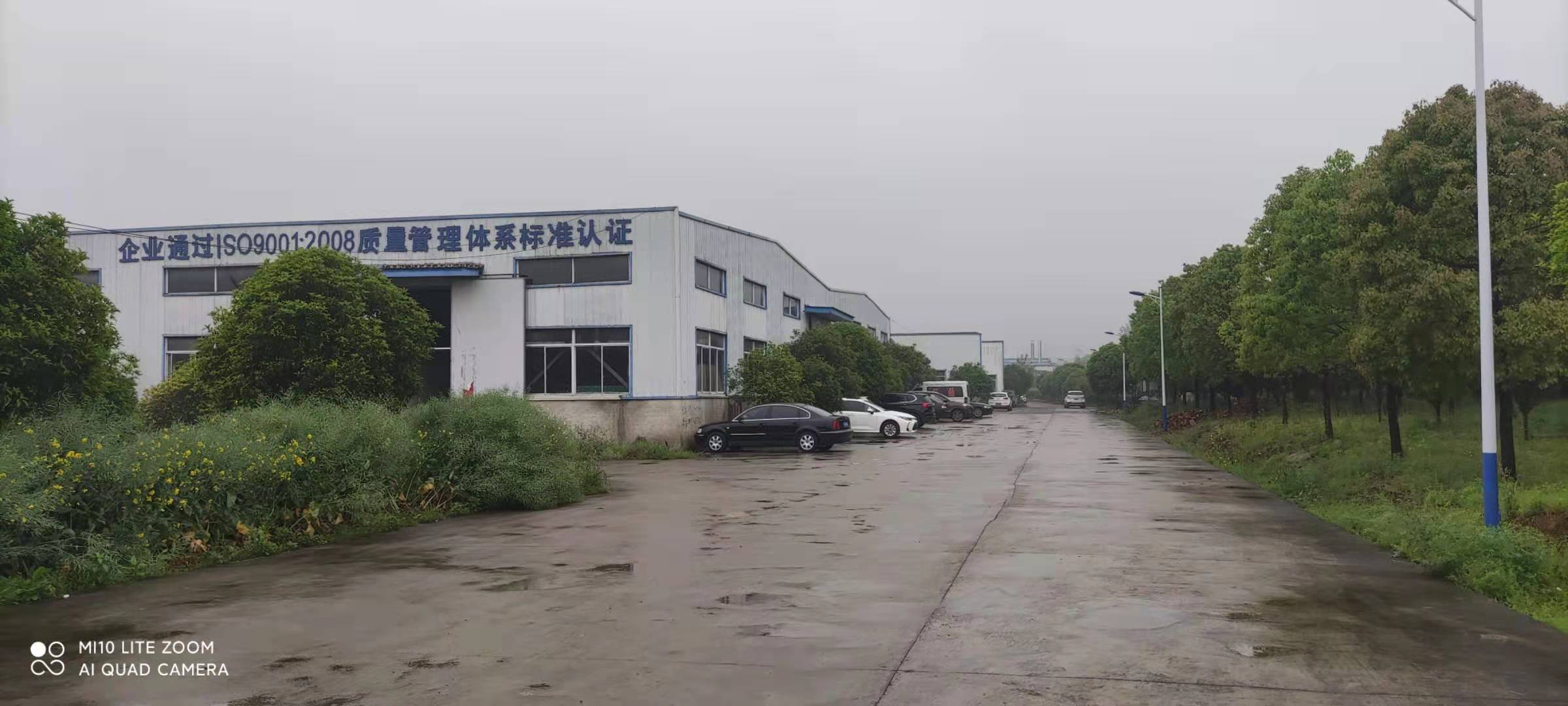

Our Company
