Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube Fwdm

Product Description

Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube Fwdm

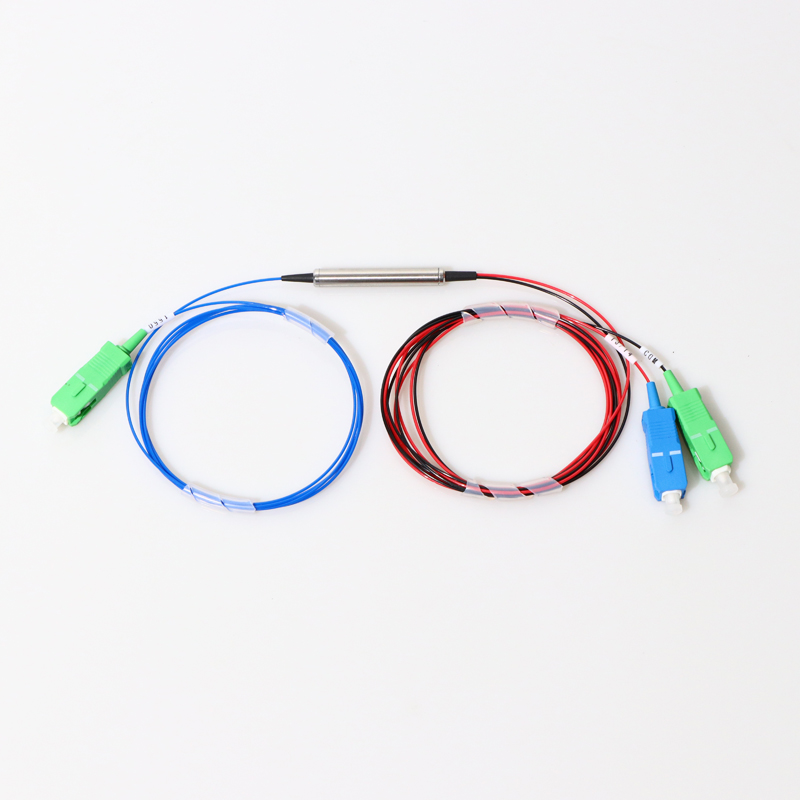

The 1310/1550nm Filter Wavelength Division Multiplexer is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.

Parameter			Unit	Values
Transmission Wavelength Range			nm	1530~1600 (or 1270~1350)
Reflect Wavelength Range			nm	1270~1350 (or 1530~1600)
Max. Insertion Loss	Transmission	dB	0.6
Max. Insertion Loss		Reflect	dB	0.4
Min. Isolation	Transmission	dB	30
Min. Isolation		Reflect	dB	12
Max. PDL			dB	0.1
Min. Channel Flatness			dB	0.3
Min. Return Loss			dB	50
Max. Power Handling(CW)			W	0.3, 0.7, 1, 2, 3
Max. Tensile Load(N)			N	≤5
Fiber Type			-	SMF-28e
Operating Temperature			℃	-5 to +70
Storage Temperature			℃	-40 to +85
Package Dimensions			mm	Ø5.5 x L35

Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube Fwdm

Company Profile

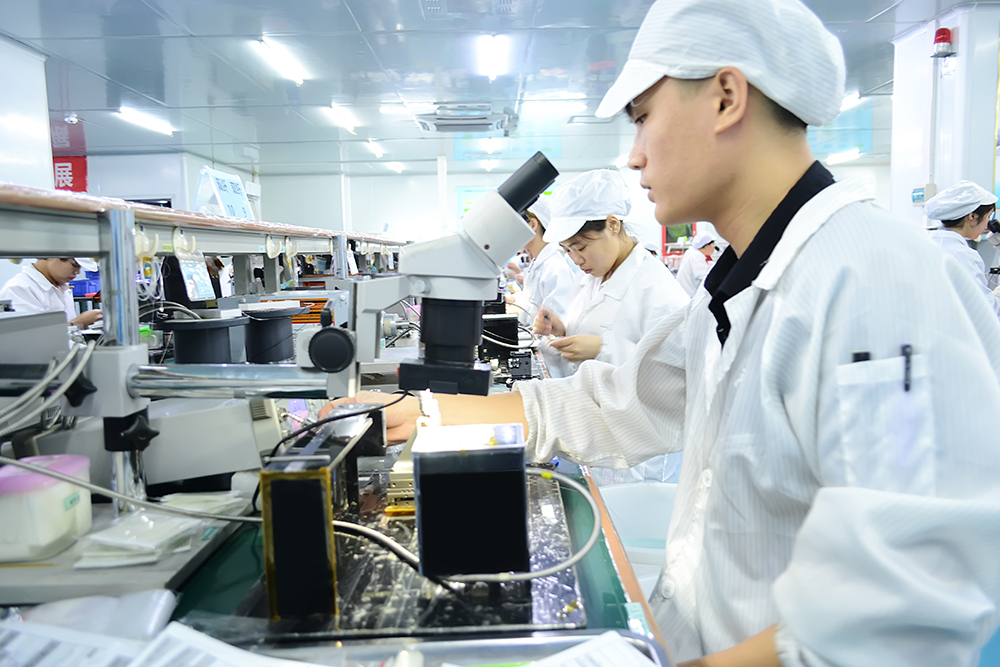

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
