9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC

Ask Lasest Price
Model Number :	PC/UPC/APC
Brand Name :	OEM/ODM
Certification :	RoHS
Price :	$0.95/pieces 100-4999 pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC

Product Description

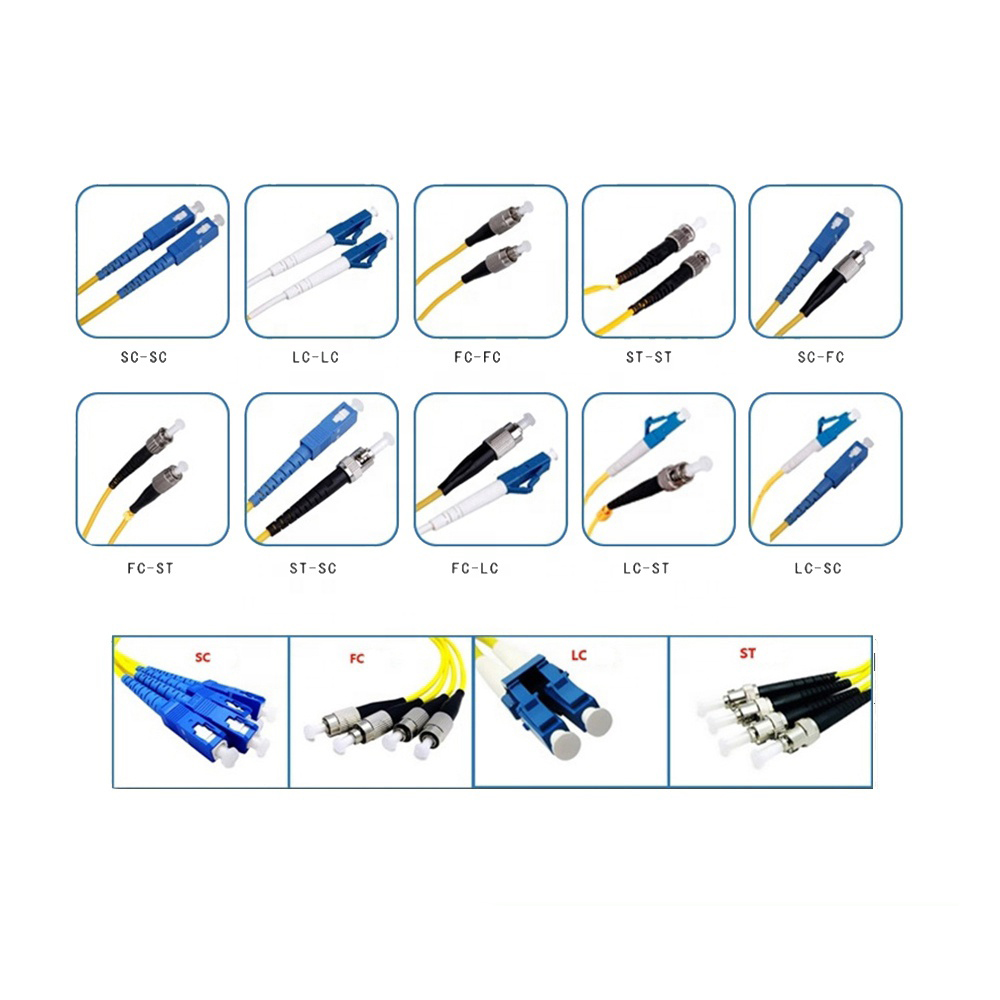

High quality Single Mode 9/125 Duplex ST LC FC SC-SC/UPC Fiber Optic Patch Cord

1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC

Mode	Single mode			Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm			850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326
