24 Core 36 Core Armoured Fiber Optic Cable , Outdoor Waterproof Pigtail Patch Cord

Ask Lasest Price
Model Number :	SC/APC, Waterproof fiber optic pigtail
Brand Name :	OEM
Supply Ability :	10000 Piece/Pieces per Day
Price :	$4.50 - $18.50/pieces
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

24 Core 36 Core Armoured Fiber Optic Cable , Outdoor Waterproof Pigtail Patch Cord

Product Description

4 6 8 12 24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail Patch Cord Jumper Wire Cable

Description

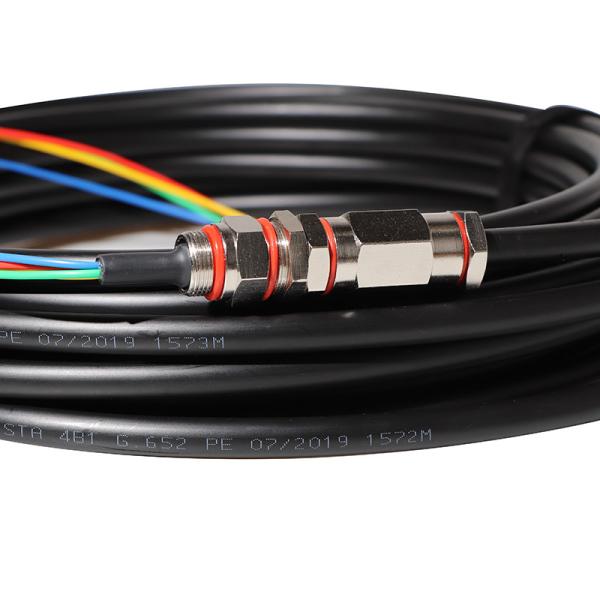

Waterproof fiber optic pigtail is made up with high quality connector, high quality waterproof fiber optic cable and qualified waterproof copper joint assembly. It features high environmental suitability, easy installation, a long lifetime, high tensile strength and sound grounding. Due to great water resistance, the fiber pigtail can also work normally even in many harsh conditions. The waterproof optical fiber pigtail can be equipped with different connectors such as FC,SC,LC,ST,MU,MTRJ,SMA...according to customers' specific requirements. Waterproof fiber optic pigtail is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication systems.

24 Core 36 Core Armoured Fiber Optic Cable , Outdoor Waterproof Pigtail Patch Cord

Characteristics

1. Fiber core: 2, 4, 6, 8,12 24 or customized 2. Waterproof features & reliable performance 3. Pull & erosion resistance, good grounding 4. Low insertion loss, high return loss, excellent exchangeability, high stability 5. The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.

Application scope of the product

①.The data transfer. ②.Telecommunication network. ③.Test equipment. ④.Mixer broadband network. ⑤.CATV

Advantages of products

①.High reliability and stability ②.High echo loss, low insertion loss ③.Good interchangeability

Fiber type	Single mode:	(1)9/125-G652D	(2)9/125-G655	(3)9/125-G657A,G657A2	(4)9/125-G657B3
Fiber type		Multimode:	(5)50/125-OM2	(6)62.5/125-OM1	(7)50/125-OM3	(8)50/125-OM4	(9)50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura
Connector	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket	PVC, OFNR, LSZH, OFNP
length(M)	0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

Main Products

Fiber Optic Cable

Patch Cord&Pigtail

MPO/MTP

FTTX Cable Assembly

PLC Splitter

Fast Connector

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. When our company be established?
Answer: We started from year 2008.

3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
